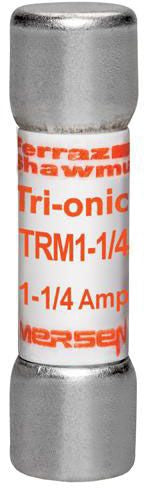

Mersen EP TRM1-1/4 Midget Fuse
Regular price
$8.01
Couldn't load pickup availability
Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications.
Specifications:
Characteristics: 12 Second Time Delay (200 Percent Rated Load)
Voltage Rating: 250 Volt AC
Current Rating: 1-1/4 Amp
Interrupting Rating: 10 Kiloamp (AC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-14, CSA C22.2
