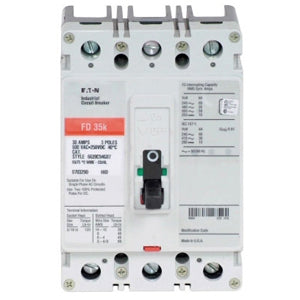

Cutler-Hammer FD3015L Non-Interchangeable Trip Breaker

Patented Contact Design Features High Speed Blow-Open Action, Resulting in Superior Performance; Circuit Breakers Significantly Outperform the Calculations Listed in the Institute of Electrical and Electronic Engineers (IEEE) Standard 1584-2002, Guide for Performing Arc Flash Hazard Calculations; Choose from a Complete Family of Trip Units Including Thermal Magnetic, Electronic and Magnetic Only Switch

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: FD
Voltage Rating: 600 Volt AC at 50/60 Hertz, 250 Volt DC
Maximum AC Voltage Rating: 600 Volt
Maximum DC Voltage Rating: 250 Volt
Current Rating: 15 Amp at 40 Deg C
Number of Poles: 3
Interrupting Rating: 65 Kiloamp at 240 Volt AC at 50/60 Hertz, 35 Kiloamp at 480 Volt AC at 50/60 Hertz, 18 Kiloamp at 600 Volt AC at 50/60 Hertz, 10 Kiloamp at 250 Volt DC
Terminal Type: Standard Pressure Line and Load
Size: 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Approval: UL 489, CSA C22.2
