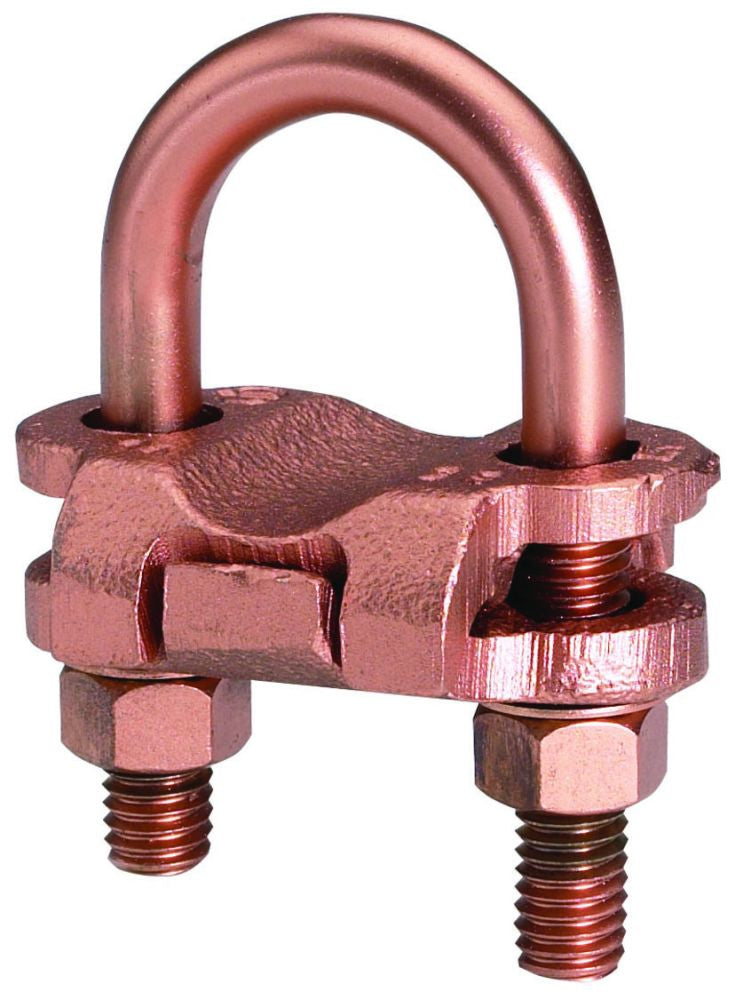

Burndy GP64526G1 Mechanical Grounding Clamp Connector

High Copper Alloy Ground Connector for Raised Floor Computer Grounding Applications; These Connectors Can be Installed on Round and Square Pedestal Applications and will Accommodate One or Two Grounding Wires to Make an Efficient Grid; The Underfloor Signal Reference Grid Provides the Low Impedance Ground Path that Attenuates High Frequency Static and 60 Hz Transient Noise for Cleaner Data Output; This Patented Connector Offers a Low Impedance, Time Saving Connection Between Conductors and the Pedestal; Accepts 1 or 2 Ground Conductors; Requires Less Connectors to Install Signal Reference Grid; Grounds All Pedestals (Round or Square); Will Handle from 3/4 to 1 Inch Round or Square; Ease of Installation; RoHS Compliant

Specifications:

Conductor Size: (1 or 2) 4 AWG Solid to 2/0 AWG Stranded (Copper)

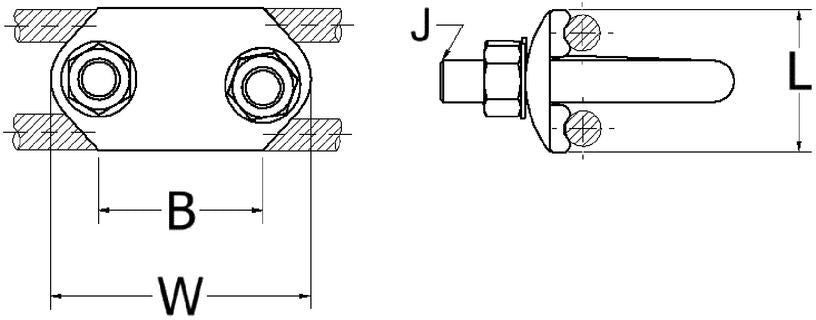

Size: 1.69 Inch L x 2.38 Inch W
Installation: U-Bolt to Pedestal
Material: Cast High Copper Alloy Body, Durium Silicon Bronze U-Bolt, Nut, Lockwasher
Approval: UL 467
Used On: (2) Grounding Wire to Round/Square Raised Floor Pedestal
