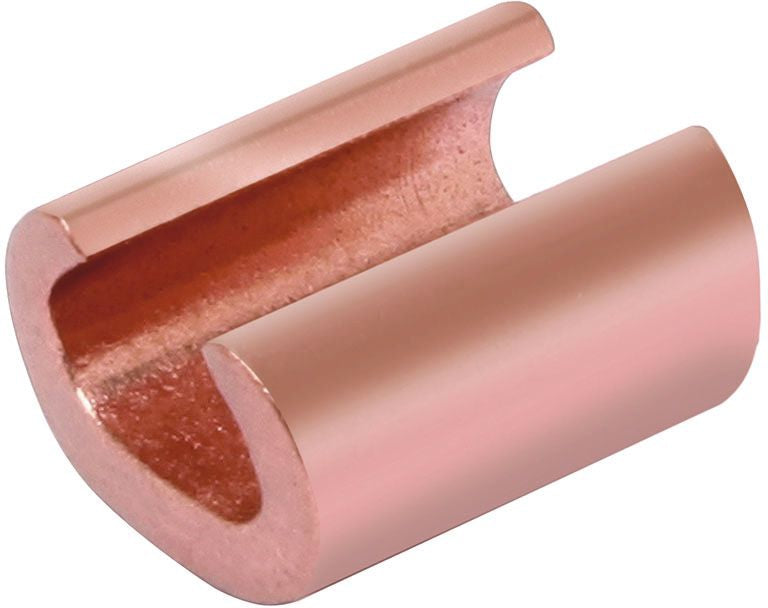

Burndy YC26C2 Compression Tap Connector

Out of stock
SKU: 107141
Regular price $25.18
OR

Range-Taking Conductor; Lowers Inventory Requirements; Compact Size; Easy to Tape and Insulate Connection; Manufactured from High Conductivity Wrought Copper Provides Low Resistance and Excellent Electrical Conductivity; Economical Provides Low Installed Cost; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Shape: C
Number of Taps: 1
Conductor Material: Copper
Minimum Run Conductor Size: 1/0 AWG Solid, 2/0 AWG Stranded
Maximum Run Conductor Size: 1/0 AWG Solid, 2/0 AWG Stranded
Minimum Tap Conductor Size: 8 AWG Solid, 2 AWG Stranded
Maximum Tap Conductor Size: 8 AWG Solid, 2 AWG Stranded
Die Index: E/O
Body Material: Copper
Approval: UL 486A/486B, CSA
