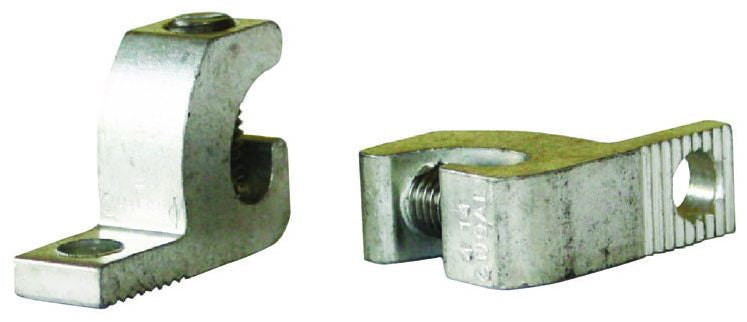

The Lay-In QIKLUG is Manufactured from High Strength 6061-T6 Aluminum and is Ideally Suited for Grounding and Bonding Applications Accommodating Both Copper and Aluminum Conductor Sizes 14 AWG to 250 KCMIL; For Copper and Aluminum Conductor Combinations up to 90 Deg C, 600 Volt Applications; Ensures Reliability; Electro-Tin Plated Provides Low Contact Resistance; Lay-In Feature Eases Installation; RoHS Compliant

Specifications:

Type: Lay-In
Number of Conductors: 1
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 1/0 AWG Stranded
Conductor Material: Copper/Aluminum
Screw Type: Slotted Head
Material: Electro Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 0.8 Inch Length x 0.6 Inch Width x 0.22 Inch Thickness
Stud Size: 3/8 Inch-24 TPI
Overall Length: 1.5 Inch
Approval: UL 468A/B, CSA
