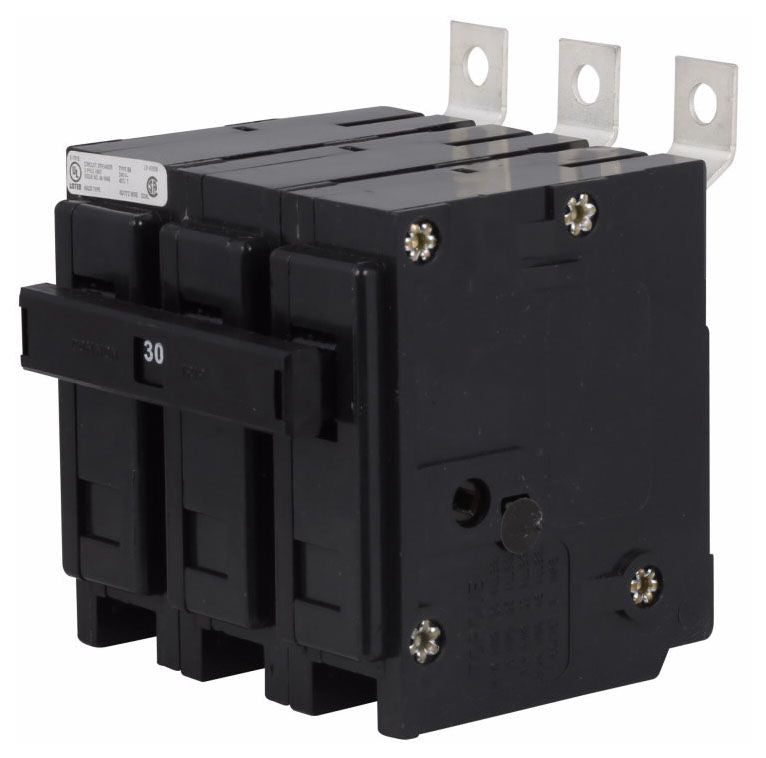

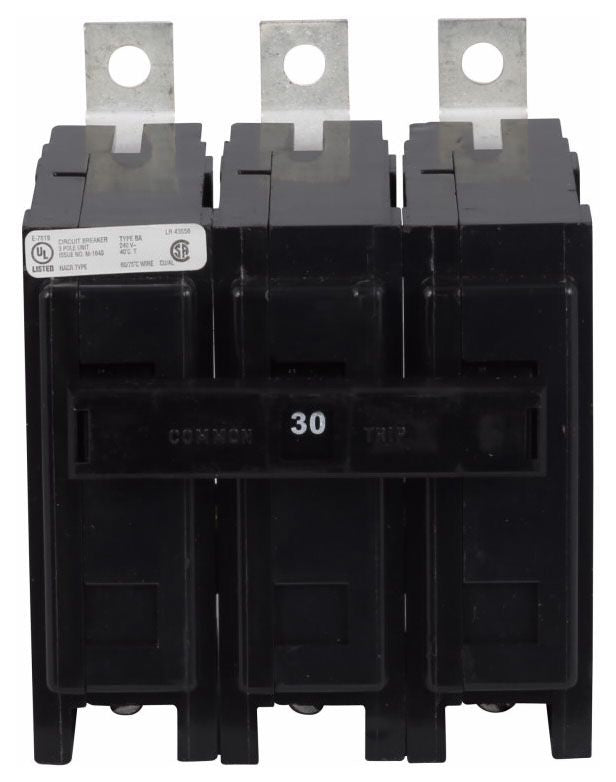

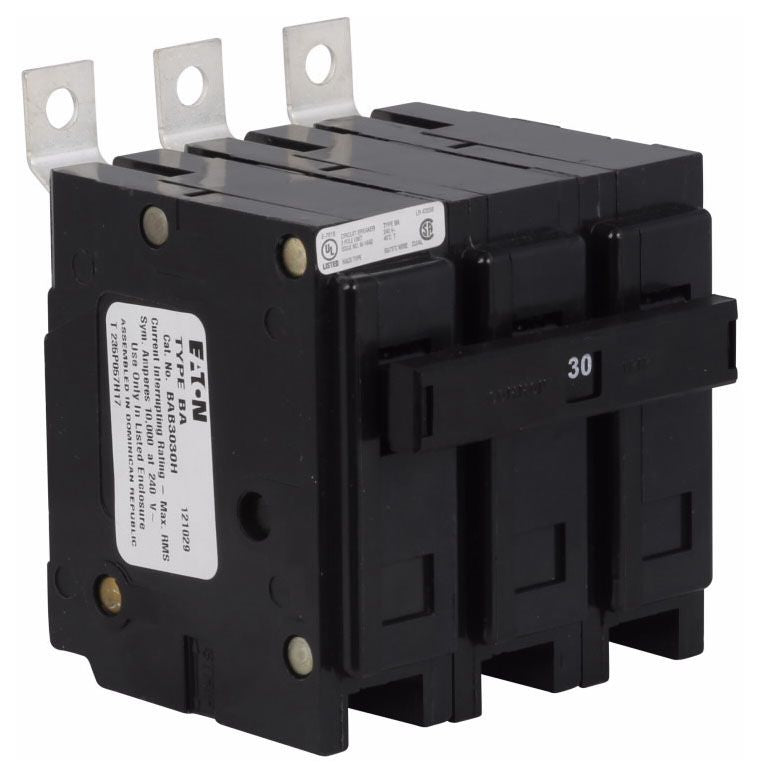

Eatonâ€s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Specifications:

Type: Thermal Magnetic
Number of Poles: 3
Voltage Rating: 240 Volt AC
Current Rating: 40 Amp at 40 Deg C
Interrupting Rating: 10 Kiloamp at 240 Volt AC
Terminal Type: Extended Tang Line, Box Lug Load
Wire Size: 14 to 4 AWG Copper/Aluminum (Load)
Mounting: Bolt-On
Approval: UL 489, CSA
