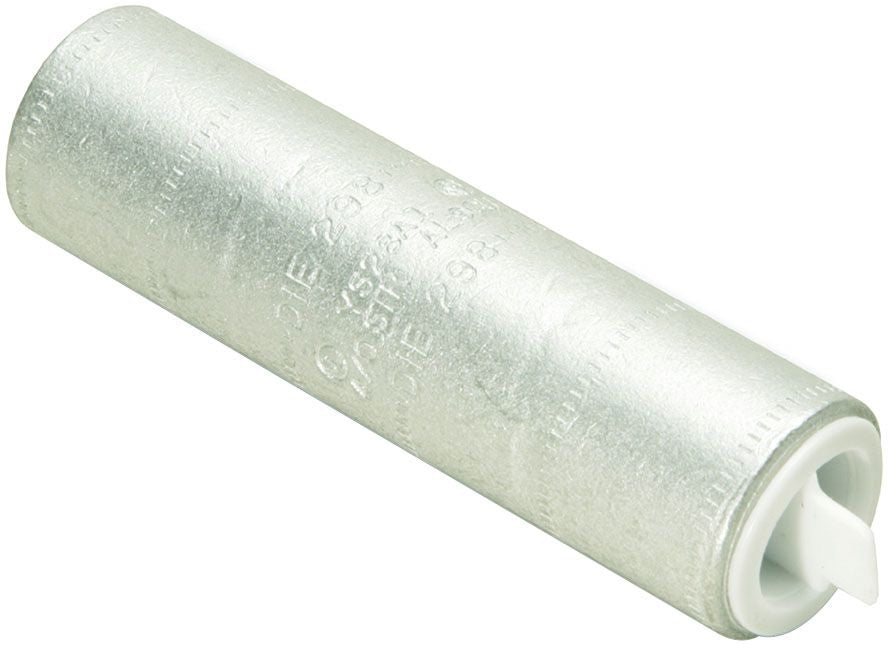

Burndy YS29A1 Compression Cable Splice

Out of stock
SKU: 107752
Regular price $19.63
OR

Manufactured from High-Conductivity Wrought Aluminum with Heavy Duty Wall Thickness; Provides High-Conductivity/Low Resistance and Ductility for an Excellent Combination of Electrical and Crimp Forming Properties; Electro-Tin Plated Provides Durable Long Lasting Corrosion Resistance; Internally Beveled Barrel Provides Easy Cable Entry; Solid Center Stop and Pre-Filled with Penetrox Oxide Inhibiting Compound Provides Stop for Proper Conductor Insertion and an aid in Forcing the Penetrox Between the Individual Wire Strands; Color-Coded End Caps Provides Easy Wire Size and Die Code Identification Plus Prevents Foreign Materials from Entering and Contaminating the Connector Prior to Usage; RoHS Compliant

Specifications:

Type: Butt with Center Wire Stop
Voltage Rating: 35 Kilovolt
Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
Conductor Material: Copper/Aluminum
Color Code: Red
Barrel Type: Long with Belled End, Chamfered
Length: 3.18 Inch
Outer Diameter: 0.92 Inch
Body Material: Electro Tin Plated Aluminum
Approval: UL, CSA
