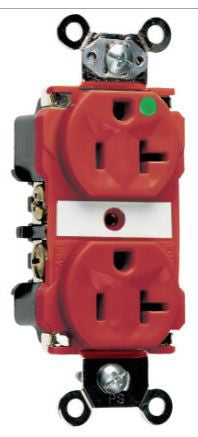

Pass & Seymour 8300RED Duplex Receptacle

  • Sale
  • Regular price $13.86
  • 5 available
Shipping calculated at checkout.


One Piece Nickel Plated Brass Mounting Strap with Integral Ground; Strap Tabs Wrap Around and Lock Down on Face to Prevent Strap from Separating from Face and Back Body; Two-Drive Screws Anchor Strap to Back Body and Face; Exclusive Patented Feature, Circuit Label on Face Allows Permanent Circuit Identification; 0.04 Inch Thick Nickel Plated Brass Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break Off, Line Contact Connecting Tab for Fast, Easy Split Circuit Wiring; Impact Resistant Nylon Face and Back Body; Oversized #10 Deep Tri-Drive Head Brass Terminal and Ground Screws; Exclusive Patented Feature, External Screw Pressure Plate Back Wire Clamp on Ground Terminal for Faster, Easier Installation; External Nickel Plated Screw Pressure Plate Back Wire Clamps with #10 Brass Terminal Screws for Visual Assurance of a Good Connection; Line Terminals Accept #14 to #10 AWG Stranded or Solid Copper Clad Conductors; Auto Ground Clip Assures Positive Ground

Specifications:

Type: Duplex, Extra Heavy-Duty
Constructional Feature: Impact Resistant
Configuration: 5-20R
Voltage Rating: 125 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Automatic Grounding
Material: Nylon
Color: Red
Wiring: Back, Side
Grade: Hospital
Approval: UL 498, FSUL WC596, CSA C22.2
