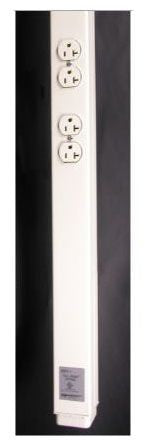

Wiremold 25DTP-4 Power and Communication Pole

  • Sale
  • Regular price $192.31
Shipping calculated at checkout.

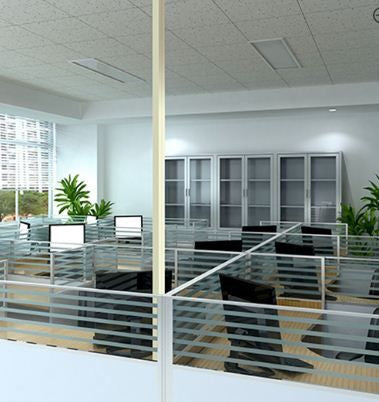

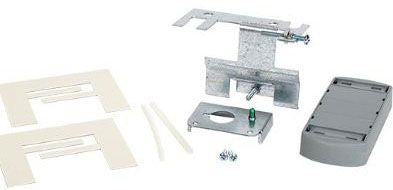

Wide Selection of Materials, Finishes, Wire Fill Capacities, Heights and Devices; Application Versatility in Commercial Open Office Landscapes, Schools, Labs, Stores and Manufacturing Plants; Communication Twist Outs; Allows Flexibility and Easy Access to Update Wiring; Reloadable; Ready for Service in 30 Minutes or Less; Dual-Channel; Accommodates Electrical Power Circuits Plus Receptacles and Low Voltage Cabling; Furnished with Feed Fittings, Ceiling Trim Plates, T-Bar Mounting Hardware and Carpet/Floor Grippers; Includes All Components for a Complete and Stationary Installation; Dedicated Custom Capabilities; Modify Receptacles, Change Enamel and Powder Coat Paint Finishes, Alter Pole Heights, Add Fixture Whips and More; Datacom Connectivity Options; Accepts Industry Standard and Proprietary Devices from a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio and Video Applications at the Point of Use; Connectivity Pole; Pole Comes Complete with Category 5E Connections; Low Voltage Cabling Entrance Fitting; 2 Inch Radius Control; For Use with 25Dt and Amdt Series; Ul Listed for Use in Plenum Areas; Jumbo Poles; Our Largest Capacity Series to Accommodate Tomorrow's Wire and Cable Requirements; RoHS Compliant; Made in USA

Specifications:

Type: Factory Wired
Shape: Rectangular
Number of Compartments: 2
Number of Outlets: 2
Outlet Configuration: (2) Duplex Receptacle
Outlet Rating: 125 Volt 20 Amp
Width: 2-1/4 Inch
Depth: 2-5/16 Inch
Height: 10 Foot 5 Inch
Wiring Capacity: (19) Unshielded Twisted Pair Category 5, (47) 2-Pair Telephone Cable, (24) (No Suggestion)/U Coaxial Cable, (8) 100 Ohm Twinaxial Cable, (6) Type 1 Shielded Twisted Pair
Material: Steel
Finish: Ivory
Installation: Entrance End Plate
Approval: UL (Canada and US)
