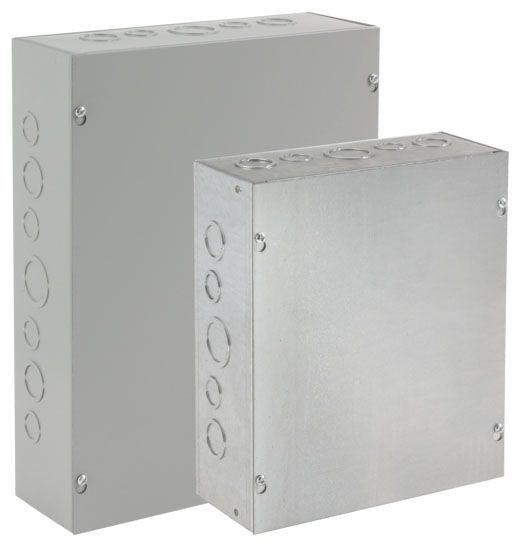

Hoffman Enclosures ASG24X18X6 Screw Cover Enclosure

Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.

Specifications:

Type: Unflanged
Height: 24 Inch
Width: 18 Inch
Depth: 6 Inch
Material: Steel
Material Specification: 16/14/12 Gauge
Finish: Galvanized, Polyester Powder Painted
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Mounting: Flush Mount
Cover Type: Flat, Screw-On
Knockout Location: (18) Side, (18) End
Number of Knockouts: 36
Knockout Size: (8) (1/2-3/4 Inch), (8) (3/4-1 Inch), (2) (1-1-1/4 Inch) Concentric Knockout Side, (8) (1/2-3/4 Inch), (8) (3/4-1 Inch), (2) (1-1-1/4 Inch) Concentric Knockout End
Service Type: Indoor
Approval: UL 50/50E, CUL, CSA C22.2
