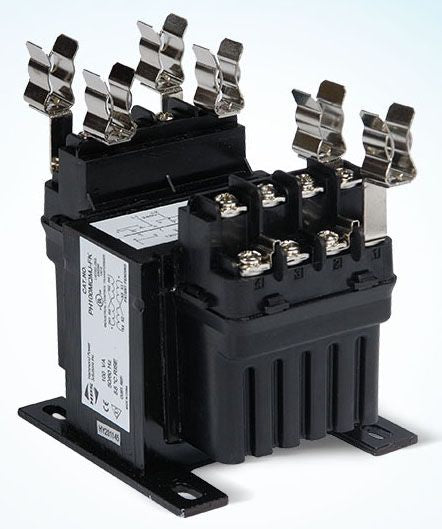

Hammond Power Solutions PH500MQMJ Encapsulated Industrial Control Transformer

The HPS Imperator series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a Volt Amp range from 50 Volt Amp to 1500 Volt Amp and available with standard secondary and optional primary fuse kits, the HPS Imperator series provides the perfect solution for any application. The HPS Imperator's unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32" x 1-1/2" midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

Specifications:

Primary Voltage: 240 x 480 Volt AC, 230 x 460 Volt AC, 220 x 440 Volt AC
Secondary Voltage: 120 x 240 Volt AC, 115 x 230 Volt AC, 110 x 220 Volt AC
Frequency Rating: 50/60 Hertz
Power Rating: 500 Volt Amp
Insulation Class: 130
Terminal Type: Screw
Temperature Rise: 80 Deg C
Mounting: 0.94 Inch Length x 0.31 Inch Width Slot
Size: 4.75 Inch Width x 5.94 Inch Depth x 4.31 Inch Height
Approval: UL 506, UL (Canada and US), CE
Applicable Standard: ANSI 506, IEC 61558, NEMA ST-1
