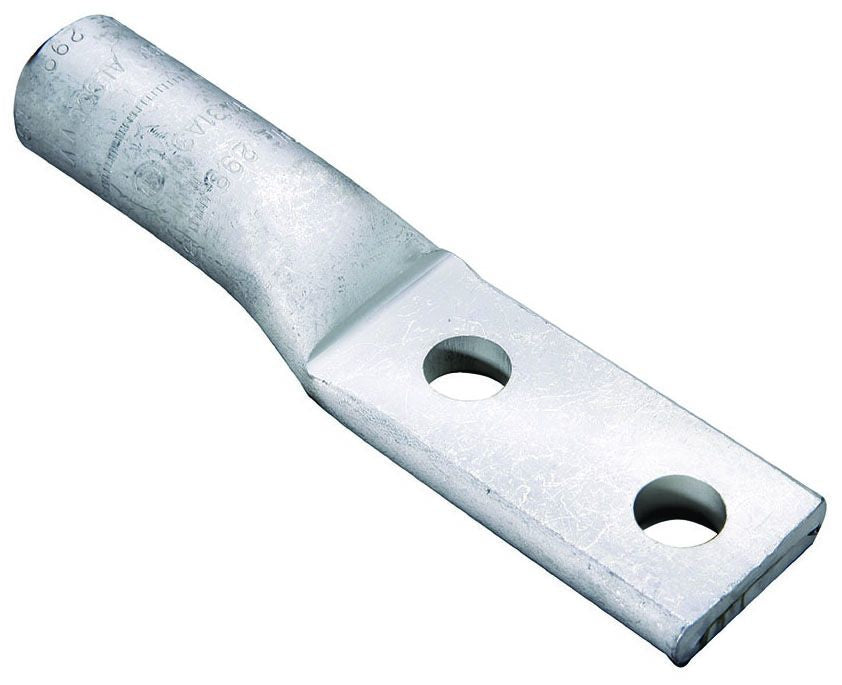

Burndy YA27A5 Compression Cable Lug

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 3/0 AWG Stranded (Code)
Barrel Type: Standard, Straight
Barrel Length: 1.31 Inch
Pad Size: 1.04 Inch Width x 0.26 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Ruby
Die Index: 467
Material: Electro Tin Plated Wrought Aluminum
Overall Length: 3.02 Inch
Approval: UL 468A/468B, CSA
