Provides Protection of Equipment from Damaging Line-To-Ground Faults Currents, De-Energizes the Circuit for all Ungrounded Conductors of the Circuit

Specifications:

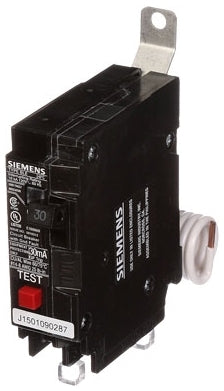

Type: Molded Case, Thermal Magnetic, Equipment Protector
Number of Poles: 1
Voltage Rating: 120 VAC
Current Rating: 30 Ampere
Interrupting Rating: 10 Kiloamp
Trip Sensitivity: 30 Milliamp
Terminal Type: Load Lug
Wire Size: 12 to 8 AWG (Aluminum), 14 to 10 AWG (Copper)
Mounting: Bolt-On
Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
Size: 3.6 Inch Width x 5.6 Inch Depth x 1.4 Inch Height
Approval: UL 489
