Burndy KA40U2N Mechanical Terminal Lug

Out of stock
SKU: 112146
Regular price $36.96
OR

These Dual-Rated One-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors

Specifications:

Number of Conductors: 1
Minimum Conductor Size: 300 KCMIL Aluminum, 300 KCMIL Stranded Copper
Maximum Conductor Size: 800 KCMIL Aluminum, 800 KCMIL Stranded Copper
Conductor Material: Aluminum/Copper
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 2 NEMA

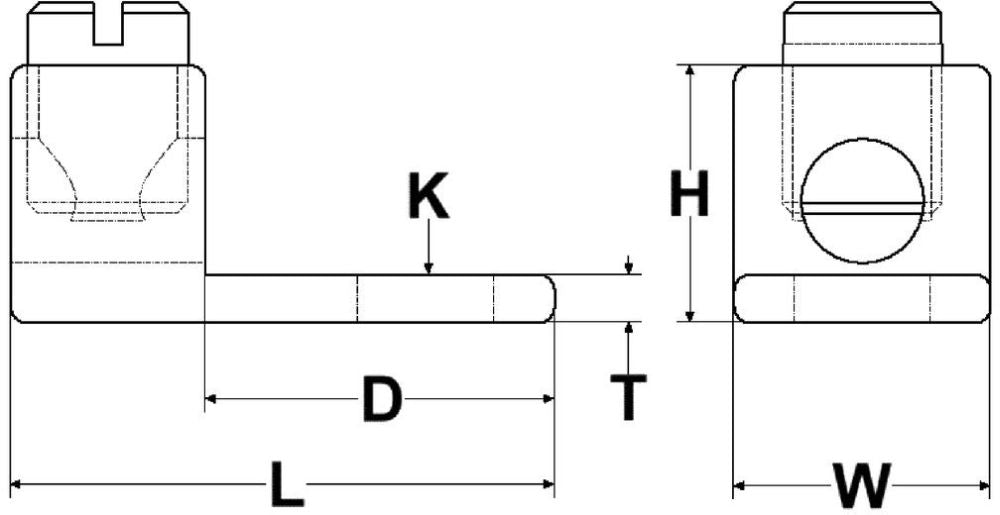

Pad Size: 3.03 Inch L x 1.77 Inch W x 0.5 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4.75 Inch
Approval: UL 468A/486B, CSA
