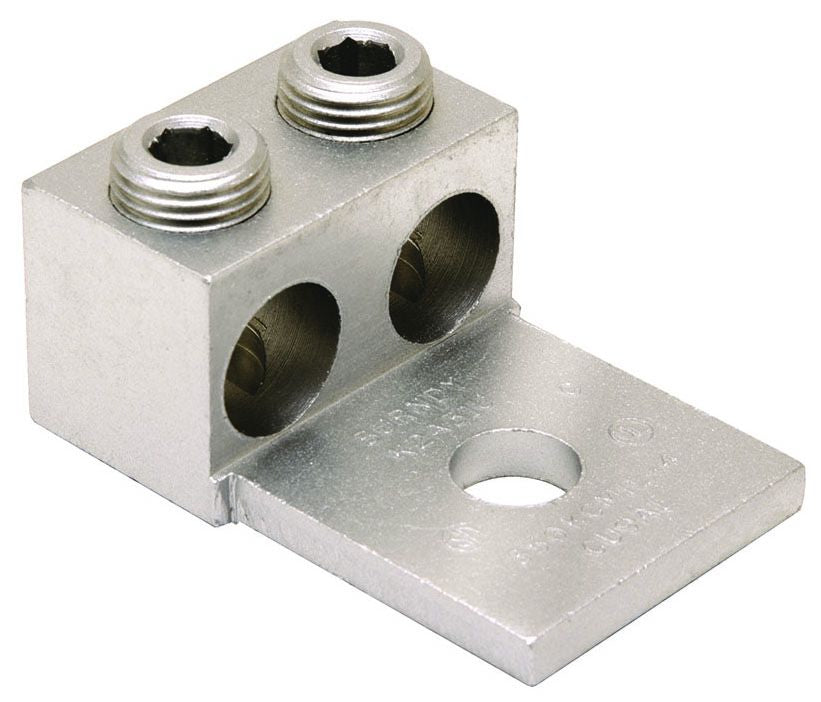

These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors

Specifications:

Number of Conductors: 2
Minimum Conductor Size: 500 KCMIL Stranded
Maximum Conductor Size: 1000 KCMIL Stranded
Conductor Material: Aluminum/Copper
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 1

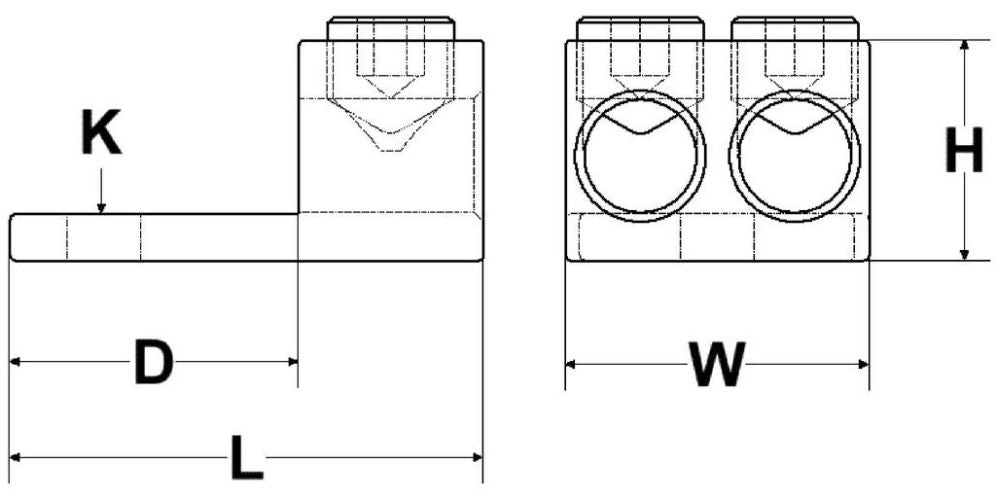

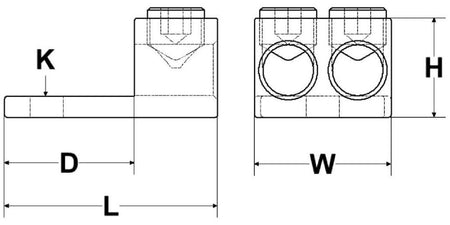

Pad Size: 1.66 Inch L x 3.52 Inch W x 0.5 Inch Thk
Stud Size: 5/8 Inch
Overall Length: 3.5 Inch
Approval: UL 468-A, UL 468-B, CSA
