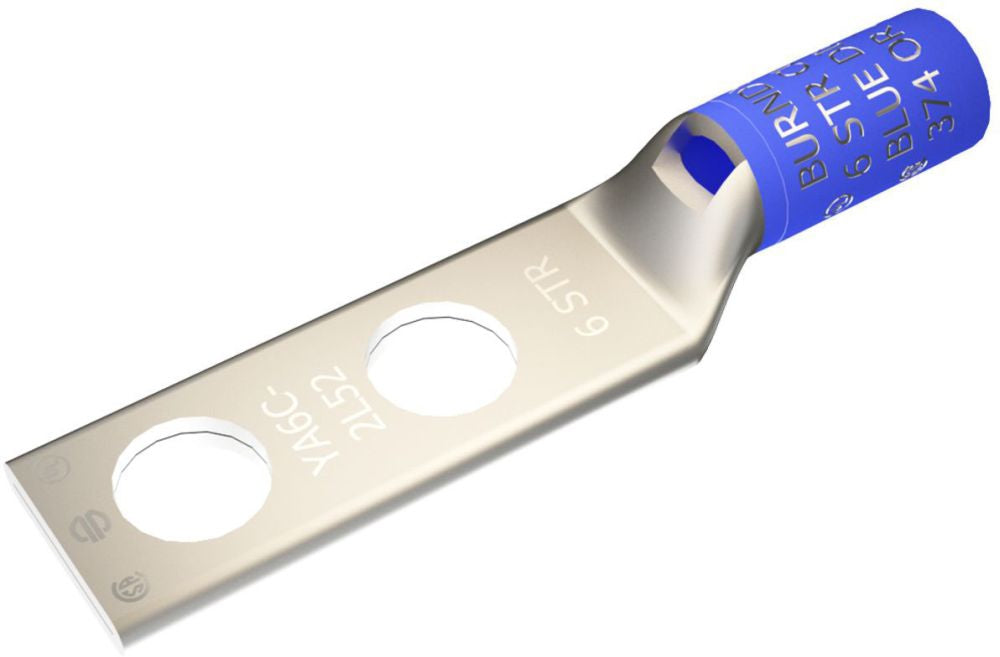

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Conductor Size: 6 AWG Stranded (Code)
Barrel Type: Short, Skived, Standard, Straight
Barrel Length: 0.54 Inch
Pad Size: 0.45 Inch W x 0.08 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 0.625 Inch
Stud Size: 1/4 Inch
Color: Blue
Die Index: 7/374
Material: Electro-Tin Plated Copper
Overall Length: 2.01 Inch
Approval: UL, CSA
