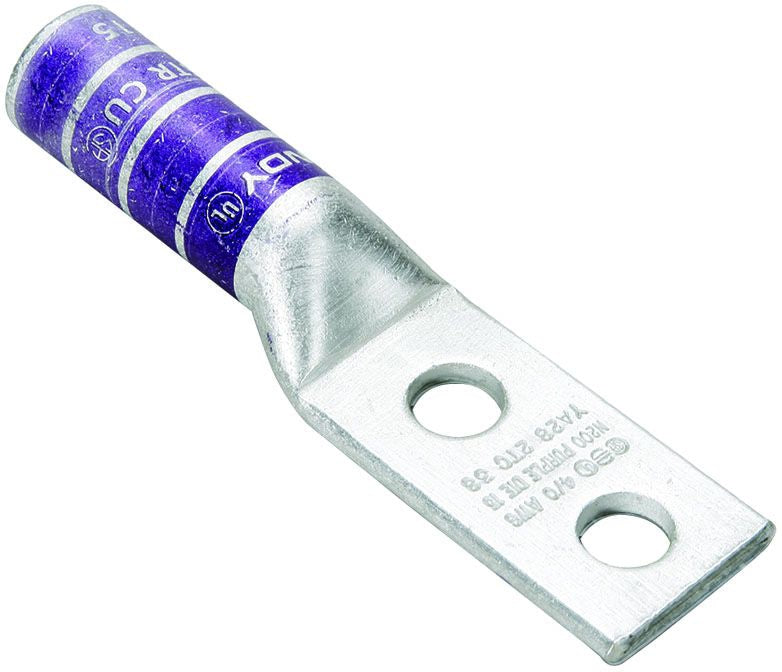

Burndy YA272N Compression Cable Lug

Out of stock
SKU: 113273
Regular price $27.78

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant


Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 3/0 AWG Stranded (Code), 150 (Navy)
Barrel Type: Long, Straight
Barrel Length: 1.5 Inch
Pad Size: 0.91 Inch Width x 0.13 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Orange
Die Index: 14
Material: Electro Tin Plated Copper
Overall Length: 5.01 Inch
Approval: UL, CSA
