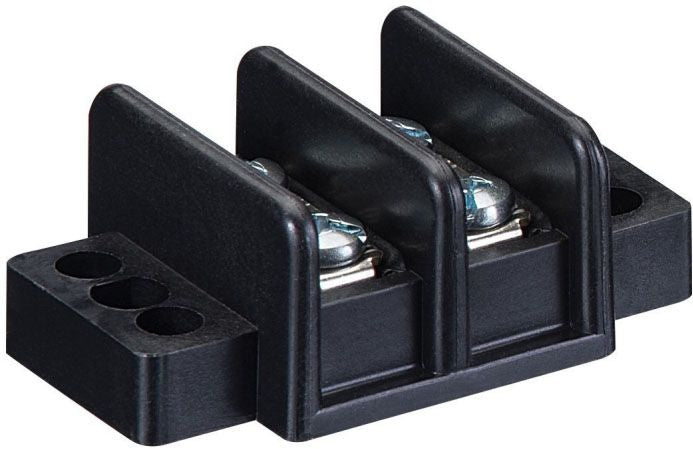

Terminal Strips are Designed and Manufactured to be Rugged, Reliable and Easy to Use; A Thermoplastic Base and Corrosion Resistant Screws and Hardware Provide Extended Service Life; Accessory Hardware Provides a Variety of Termination Option

Specifications:

Type: Center Spacing
Number of Circuits: 10
Voltage Rating: 600 Volt (UL), 250 Volt (CSA)
Current Rating: 30 Amp (UL/CSA)
Wire Size: 22 to 10 AWG (Copper)
Terminal Type: #8-32 TPI Phillips Slotted Screw
Cover Type: No
Size: 6.62 Inch Length x 1.33 Inch Width x 0.81 Inch Height
Temperature Rating: -40 to 130 Deg C
Housing Material: Rugged Polyester Thermoplastic
Mounting: Surface
Approval: UL, CSA
