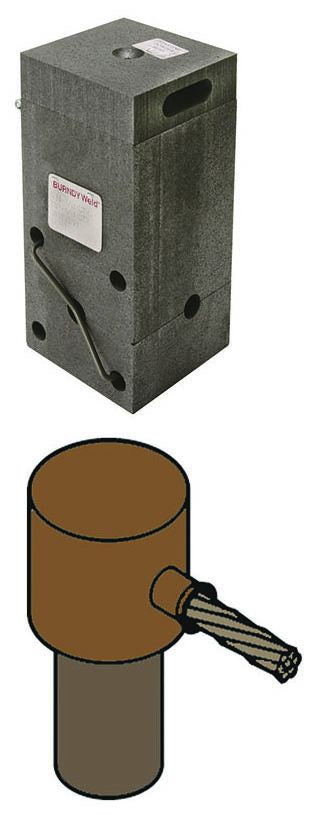

Burndy BS-2017 Cable to Ground Rod Mold

Out of stock
SKU: 113558
Regular price $16.34

The BURNDYWeld connection process is a simple, efficient method of welding copper to copper or copper to steel. One advantage is that NO outside power is required when using the BURNDYWeld exothermic process. The BURNDYWeld process uses high temperature reaction of powdered copper oxide and aluminum. The reaction takes place in a semi-permanent graphite mold. These molds will last for fifty or more welds if proper care is given. The reaction takes place very rapidly, therefore the total amount of heat applied to the conductors or surfaces is considerably less than that of brazing or soldering, it is important to remember this when welding to insulated cable or thin wall pipe.


Type: Single Shot
Mold Material: Ceramic
Rod Material: Copper Clad
Rod Size: 3/4 Inch
Conductor Size: 6 AWG Solid, 8 AWG Solid/Stranded

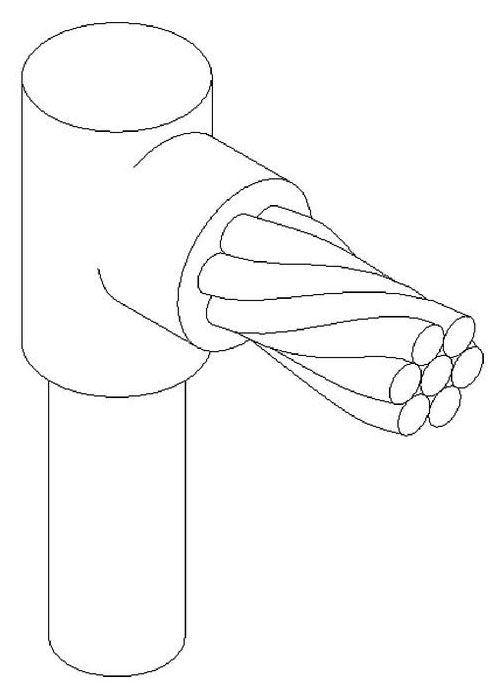

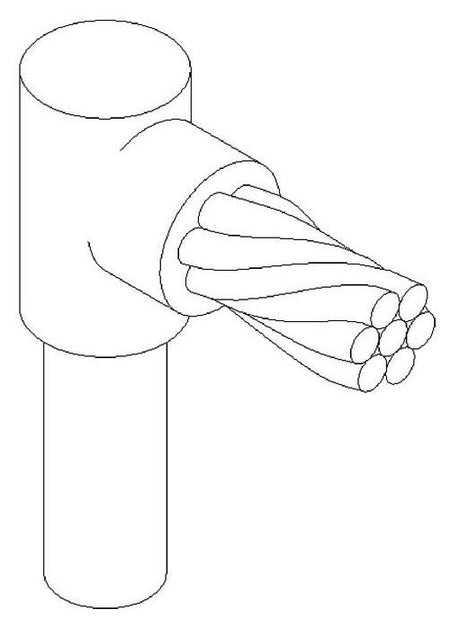

Used On: Cable to Top of Ground Rod
Approval: UL, RUS
