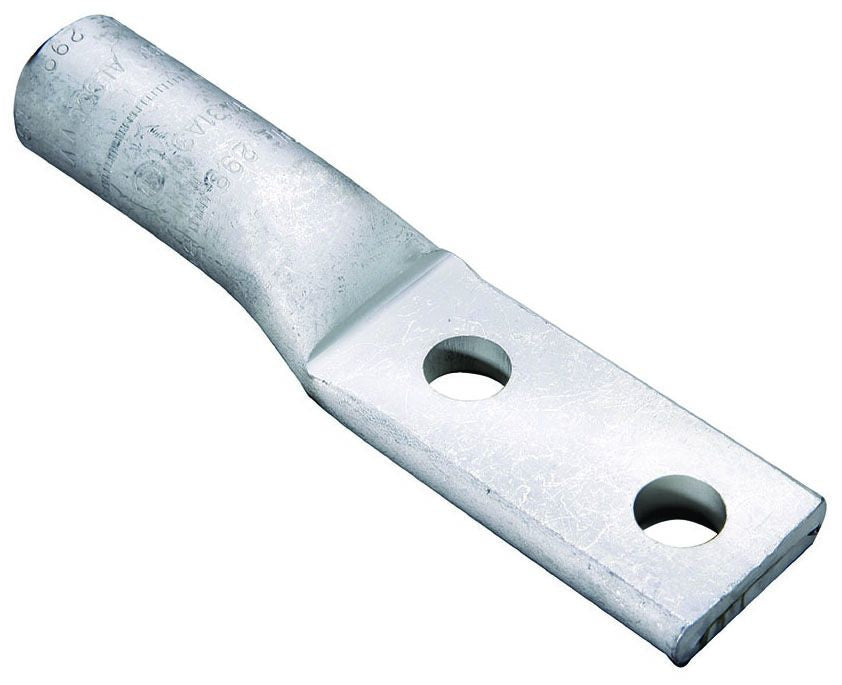

Burndy YA2CA9 Compression Terminal

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.88 Inch W x 0.16 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: 348
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 4.73 Inch
Approval: UL 468A/468B, CSA
