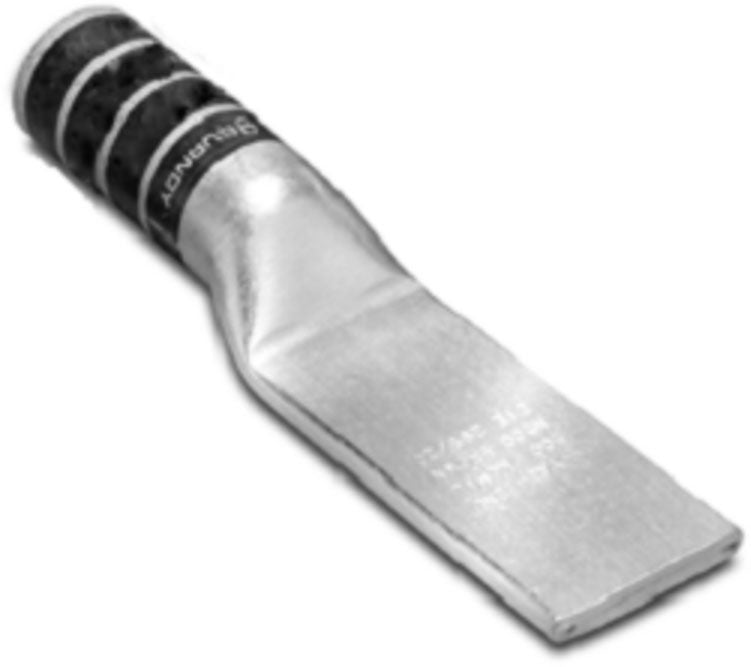

Burndy YA272NU Compression Cable Lug

Out of stock
SKU: 114518
Regular price $20.34
OR

The Blank Tongue line of copper code HYLUG terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. . This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA Certification.

Specifications:

Conductor Material: Copper
Conductor Size: 3/0 AWG Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.5 Inch
Pad Size: 0.91 Inch W x 0.13 Inch Thk
Stud Size: 1/4 Inch
Color: Orange
Die Index: 14
Material: Electro-Tin Plated Seamless Copper
Overall Length: 5.01 Inch
Approval: UL 468A/468B, CSA
