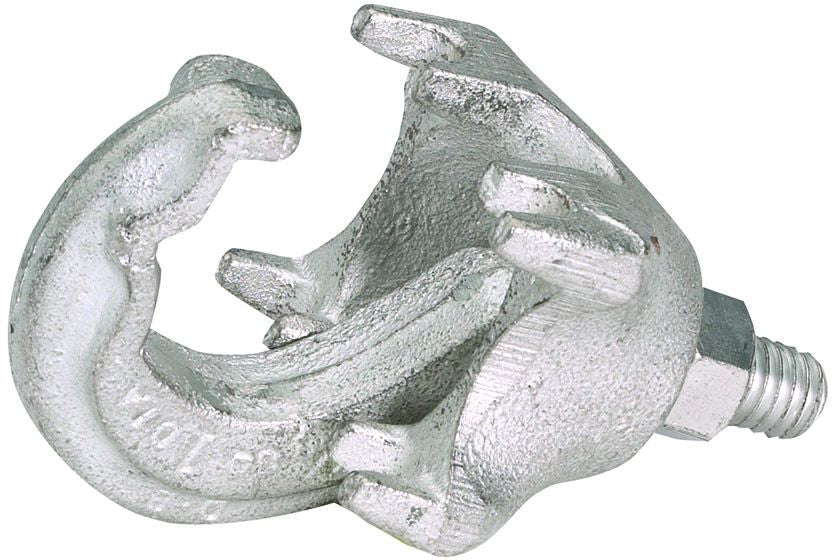

Burndy GRF4C-3 Mechanical Grounding Connector

Out of stock
SKU: 115486
Regular price $64.59
OR

The Burndy Uniground is a Universal Grounding Clamp, Specifically Designed for All Raised Flooring Systems; It Can be Installed on Round or Square Pedestals and Can Accommodate One or Two Grounding Wires to Make an Efficient Grid; The Underfloor Signal Reference Grid Provides the Low Impedance Ground Path that Attenuates High Frequency Static and 60 Hz Transient Noise for Cleaner Data Output; One Connector Fits All Applications; Ease of Specification and Installation; Single Bolt Design-Ease of Installation No Need to Disassemble; Single Wrench Installation; Accepts 1 or 2 Ground Conductors; Requires Less Connectors to Install Signal Reference Grid; Tin Plated Cast Bronze Construction; Resists Corrosion and Provides Extended Life Ground Connection; Grounds All Pedestals (Round or Square); Uniground Solves All Possible Grounding Problems Found in Computer Applications Today; RoHS Compliant

Specifications:

Conductor Size: 8 to 2 AWG Solid/Stranded (Copper)
IPS Size: 3/8 to 1 Inch
Rod Size: 3/8 to 1 Inch

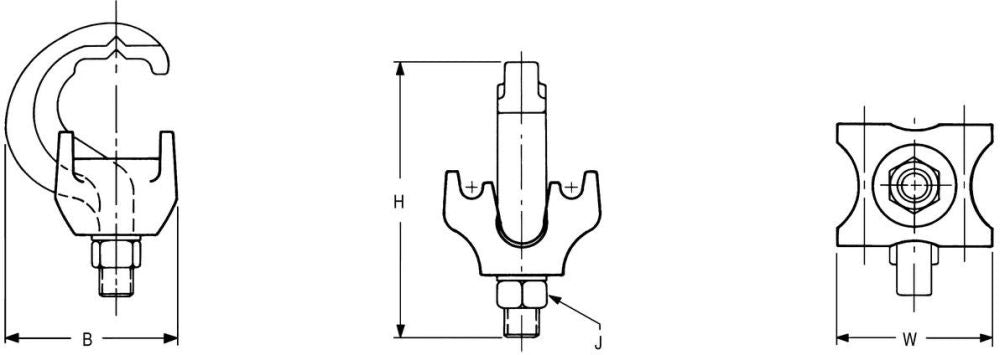

Size: 1.76 Inch W x 3.14 Inch H
Installation: (1) Hex Head Bolt to Pedestal
Material: Electro Tin Plated Copper Alloy
Approval: UL 467, CSA
Used On: (2) Grounding Wire to Round/Square Pedestal
