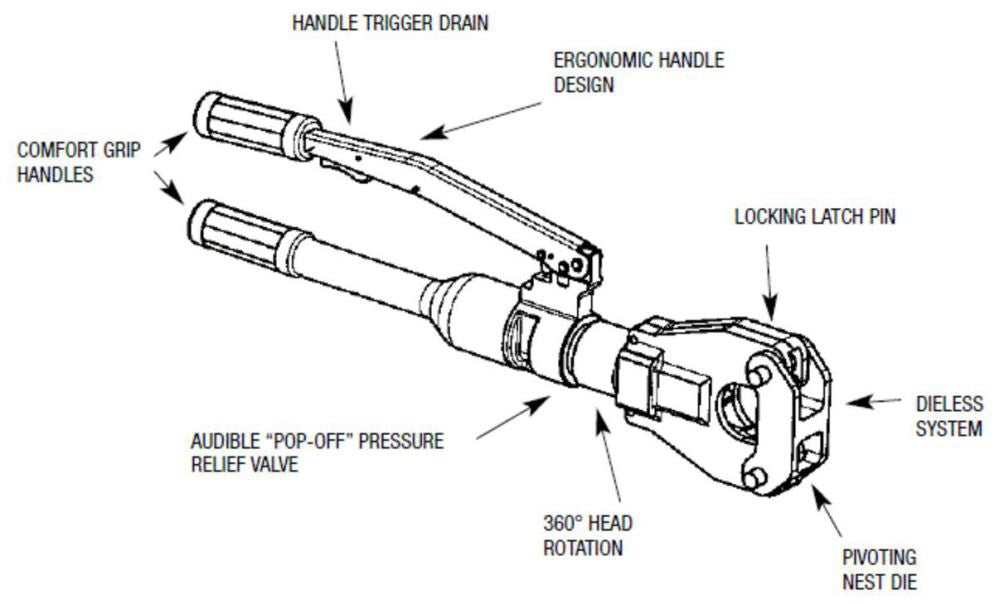

Dieless Installation System; Flip Top Head Design; Handle Trigger Release; Audible Pressure "Pop-Off" Valve and Die Embossment Providing 360 Degree Inspectability; RoHS Compliant with Exemption

Specifications:

Type: Self Contained Hydraulic, Hand Operated
Operating Pressure: 10000 PSI
Force: 6 Ton
Connector Range: 8 AWG to 750 KCMIL (Aluminum, Terminal/Splice), 8 AWG to 1000 KCMIL (Copper, Terminal/Splice)
Length: 25.6 Inch
Width: 2.5 Inch
Height: 7.7 Inch
