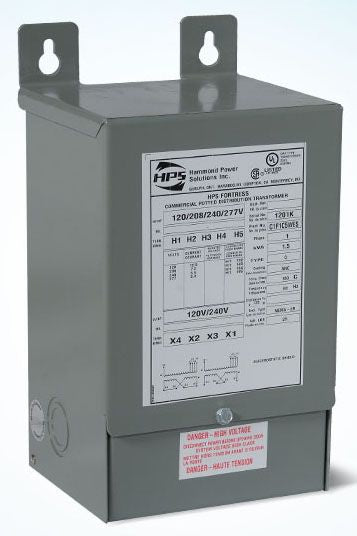

Hammond Power Solutions C1F007LES Encapsulated Distribution Transformer

HPS Fortress is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation, and low cost are key. All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.

Specifications:

Type Designation: NQ6A
Construction: Electrostatically Shielded
Primary Voltage: 240 x 480 Volt AC
Secondary Voltage: 120/240 Volt AC
Frequency Rating: 60 Hertz
Power Rating: 7.5 Kilovolt Amp
Number of Phases: 1
Winding Type: Copper
Temperature Rise: 115 Deg C
Enclosure: NEMA 3R
Size: 12.25 Inch Width x 9.25 Inch Depth x 17.63 Inch Height
Mounting: Wall
Application: Commercial
Weight: 148 Pound
Approval: UL, CSA
