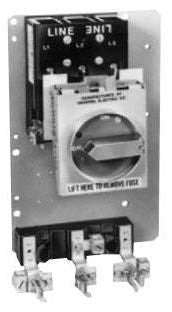

The 30-200 Ampere Fusible Switches are UL Recognized for Use on Circuits Capable of Delivering Not More than 200,000 RMS Symmetrical Amperes at 240 or 600 VAC When Fused with Class R Rated Size Fuses; They are Suitable for Use with Type STDA Flange Handles and Variable Depth Operating Mechanisms; Specify Special Screw Kit if Load Risers are to be Fastened from Underside of Base; Two Screws Required per Switch; 10 Screws in Each Product Number THMC1 Kit

Specifications:

Type: Fusible
Voltage Rating: 600 VAC/250 VDC
Current Rating: 100 Ampere
Power Rating: 30 HP at 240 VAC 3-Phase, 60 HP at 480 VAC 3-Phase, 75 HP at 600 VAC 3-Phase, 20 HP at 250 VDC
Number of Poles: 3
Fuse Clip Current Rating: 100 Ampere at 600 VAC/250 VDC
Fuse Type: Class H
Operator Type: TDR Rotary Handle
Operator Included: Handle Included
Terminal Type: Line/Load Lug
Conductor Material: Copper/Aluminum
Conductor Size: 10 to 1/0 AWG (Copper/Aluminum)
Enclosure: NEMA 1/12
Approval: UL
