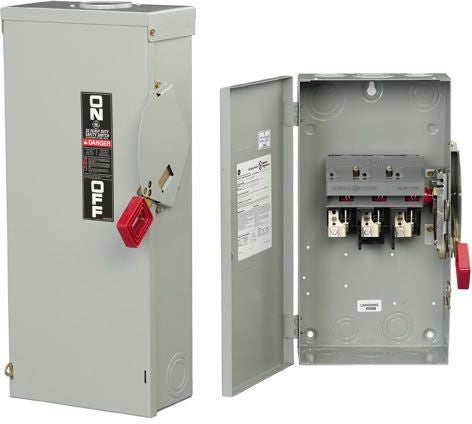

Designed for Commercial and Industrial Applications Where Safety, High Performance and Continuity of Service are Essential; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22 2 No 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type HD; Quick-Make, Quick-Break Mechanism; 60/75 Deg C Conductor Rating; Full Cover Interlocks

Specifications:

Type: Heavy Duty
AC Voltage Rating: 240/480/600 V
DC Voltage Rating: 250 V
Current Rating: 600 Ampere
Power Rating: 200 HP at 240 VAC 3-Phase, 400 HP at 480 VAC 3-Phase, 500 HP at 600 VAC 3-Phase (NEC Standard), 50 HP at 250 VDC
Number of Poles: 3
Number of Wires: 3
Fuse Provision: Non-Fusible
Neutral Type: Switching
Enclosure: NEMA 3R
Size: 22.94 Inch W x 8.34 Inch D x 53.19 Inch H
Approval: UL 98, CSA
