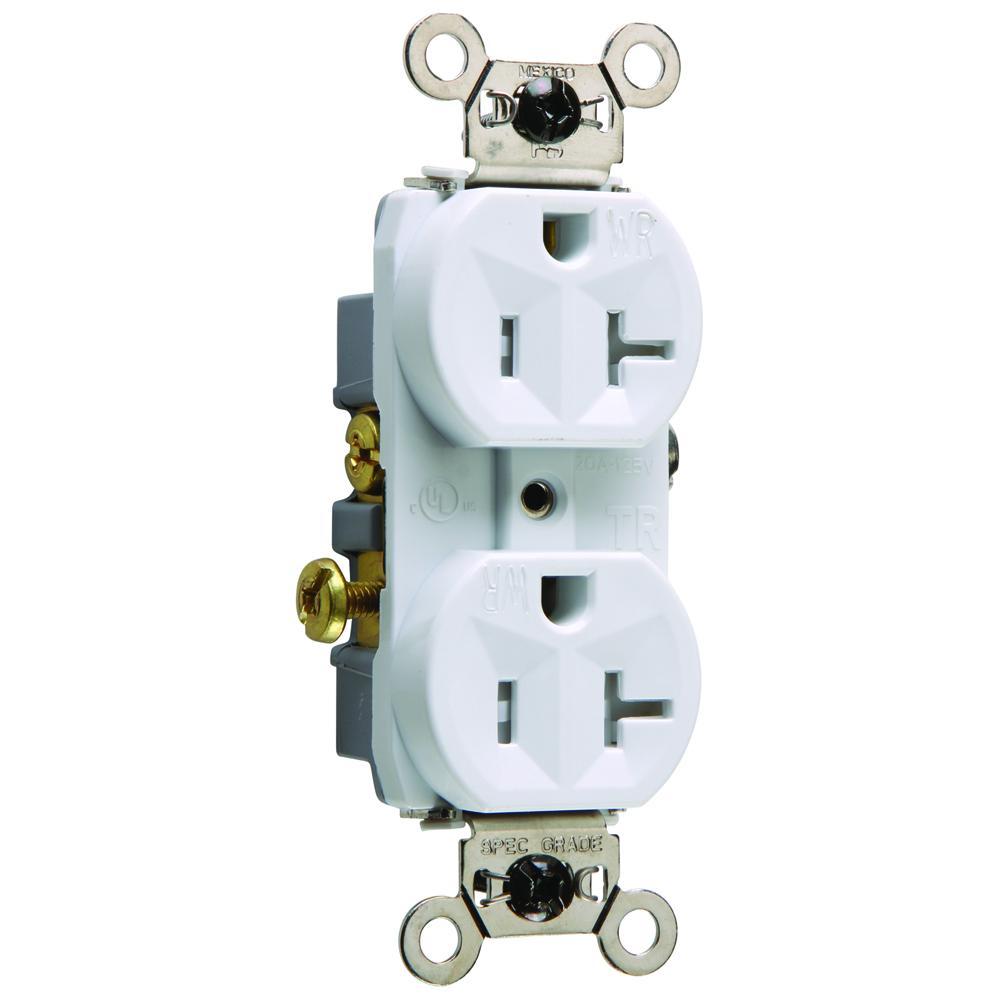

Pass & Seymour WR20TRW Straight Blade Receptacle

  • Sale
  • Regular price $8.60
  • 2 available
Shipping calculated at checkout.


Auto-Ground Clip Assures Positive Ground; WR Marking on Face as Required by UL Standard; Zinc-Plated Steel Mounting Screws for Greater Ease of Installation and Removal in Wet or Damp Locations; Strap Tabs Wrap Around Face to Prevent Strap from Separating from Face and Back Body; Tri-Drive Brass Terminal Screws Internal Screw Pressure Plate Back and Side Wire Capability Two Back Wire Holes for More Wiring Flexibility; Heavy-Duty, Brass Strap for Added Strength and Ground Conductivity; UV Resistant Nylon Face for Longer Life Under Adverse Environmental Conditions; Two-Drive Screws Anchor Strap to Back Body and Face where Abrupt Removal Torque is Strongest; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; 0.032 Inch Thick Brass Triple-Wipe Power Contacts for Lasting Retention

Specifications:

Type: Duplex, Heavy-Duty
Constructional Feature: Weather Resistant
Configuration: 5-20R
Voltage Rating: 125 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Automatic Grounding
Material: PVC (Back Body), Nylon (Face)
Color: White
Wiring: Side
Grade: Commercial
Approval: UL 498, CSA C22.2
