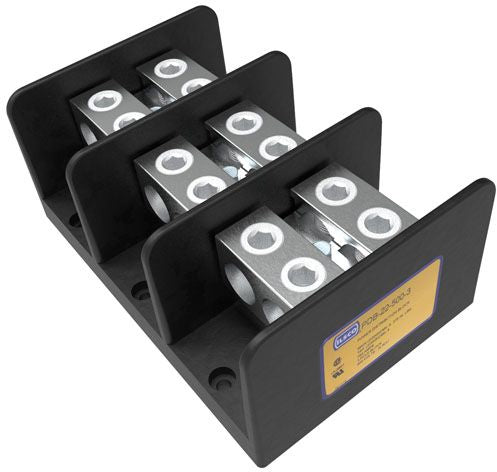

Ilsco PDB-22-500-3 Power Distribution Block

Multiple Taps Depending on Product Selected up to Twelve Taps Can be Taken from One or Two Mains; Range Taking Provides Tapping Flexibility Over a Broad Wire Range; Valox Insulating Base Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Electro Tin Plated Provides Low Contact Resistance; Manufactured from High Strength Suitable for Use with Either Copper or Aluminum Conductors; RoHS Compliant

Specifications:

Type: Standard
Voltage Rating: 600 V
Current Rating: 760 Ampere
Number of Poles: 3
Number of Primary Openings per Pole: 2
Primary Opening Wire Size: 4 AWG to 500 KCMIL
Number of Secondary Openings per Pole: 2
Secondary Opening Wire Size: 4 AWG to 500 KCMIL
Conductor Material: Aluminum/Copper
Size: 8-3/8 Inch L x 5-1/2 Inch W x 3-1/2 Inch H
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Approval: UL 1059, CSA
