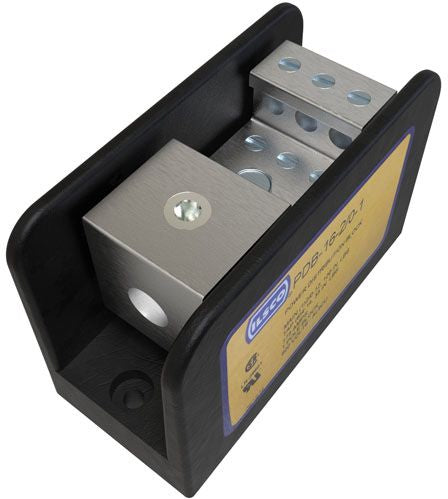

Ilsco PDB-16-2/0-1 Power Distribution Block

Range Taking; Provides Great Flexibility in Using the Connector as an in Line Splice or to Reduce Conductor Size; Valox Insulating Base; Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Provides Low Contact Resistance; Suitable for Use with Either Copper or Aluminum Conductors; Ensures Reliability; RoHS Compliant

Specifications:

Type: Standard
Voltage Rating: 600 Volt
Current Rating: 175 Amp
Number of Poles: 1
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 12 to 2/0 AWG
Number of Secondary Openings per Pole: 6
Secondary Opening Wire Size: 14 to 4 AWG
Conductor Material: Copper/Aluminum
Size: 1.843 Inch Width x 4 Inch Depth x 2.625 Inch Height
Temperature Rating: 90 Deg C
Connector Material: Electro Tin Plated Aluminum
Housing Material: Valox
Approval: UL, CSA
