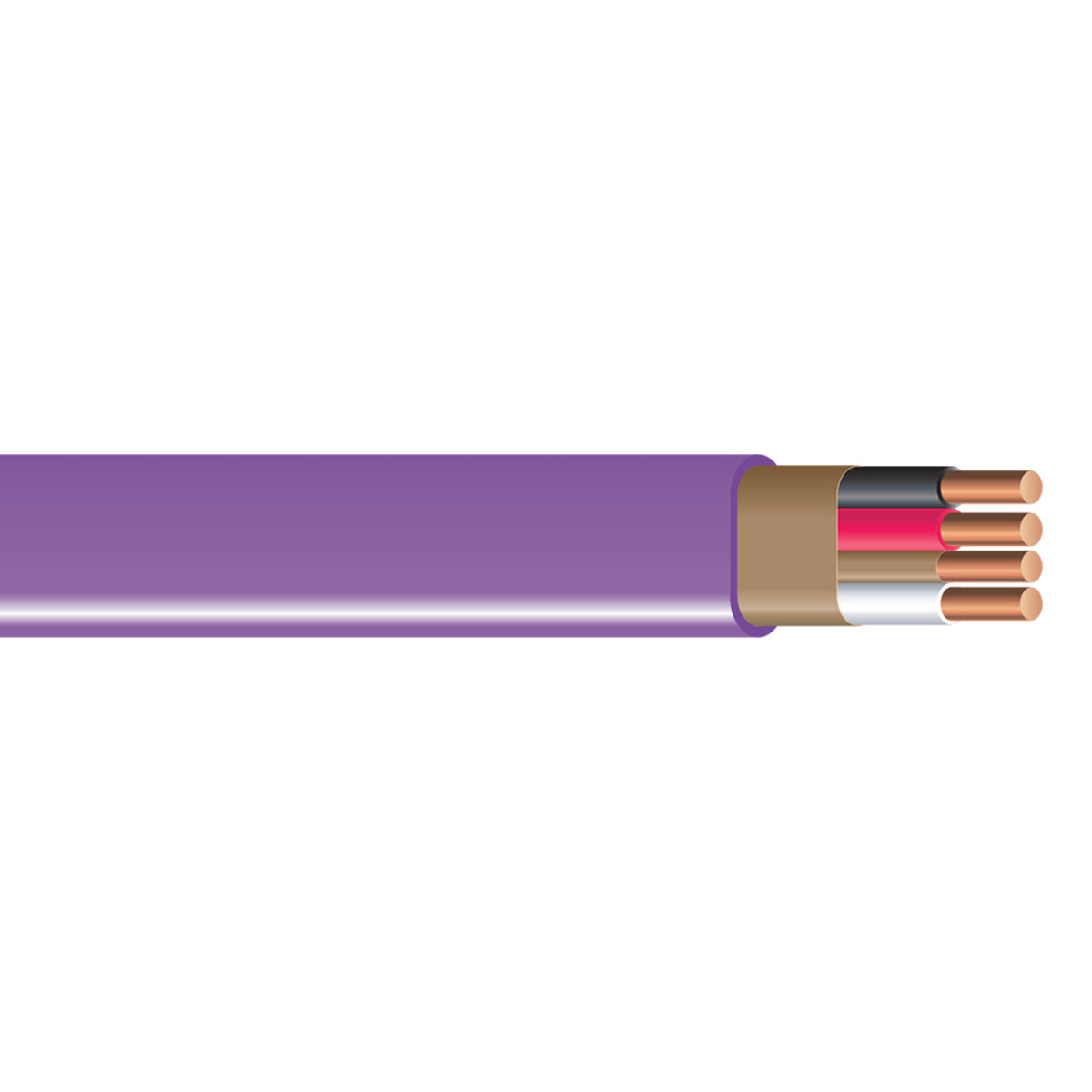

12/3 NM-B, Non-Mettalic, Sheathed Cable, Residential Indoor Wire, Equivalent to Romex

  • Sale
  • Regular price $93.16
Shipping calculated at checkout.


Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in NEC 2008 and NEC 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the NEC 2008 and NEC 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B.

Standards:
Meets or exceeds all applicable ASTM specifications
UL Standard 83: Thermoplastic Insulated Wires and Cables
UL Standard 719: Non-Metallic Cables
Federal Specification A-A-59544 and requirements of the NEC
Voltage rating - 600 volts

Construction:
Insulation: Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90℃C
Sheath:30 mil color coded PVC sheath rated 90℃C is applied over the completed assembly

Specifications:
Size:#12 AWG
Number of Conductors:3
PVC Insulation Thickness:0.38 mm / 0.37 inches
Ground Wire Size:12 AWG
Nylon Thickness:0.100 mm / 0.004 inches
Nominal Cable Dimensions: 8.6 mm x 0.37 inches
Weight per Foot: 0.107 lbs
Allowable Ampacity: 20 Amps
