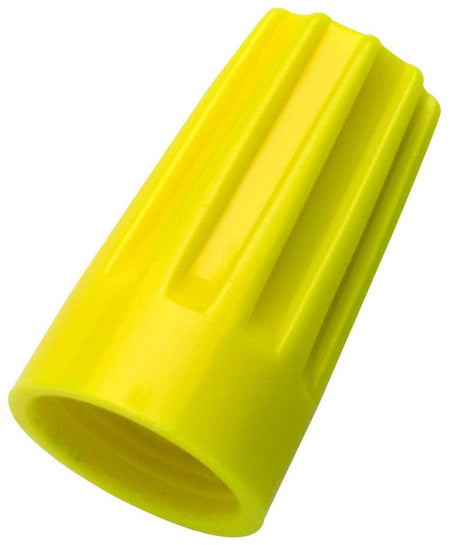

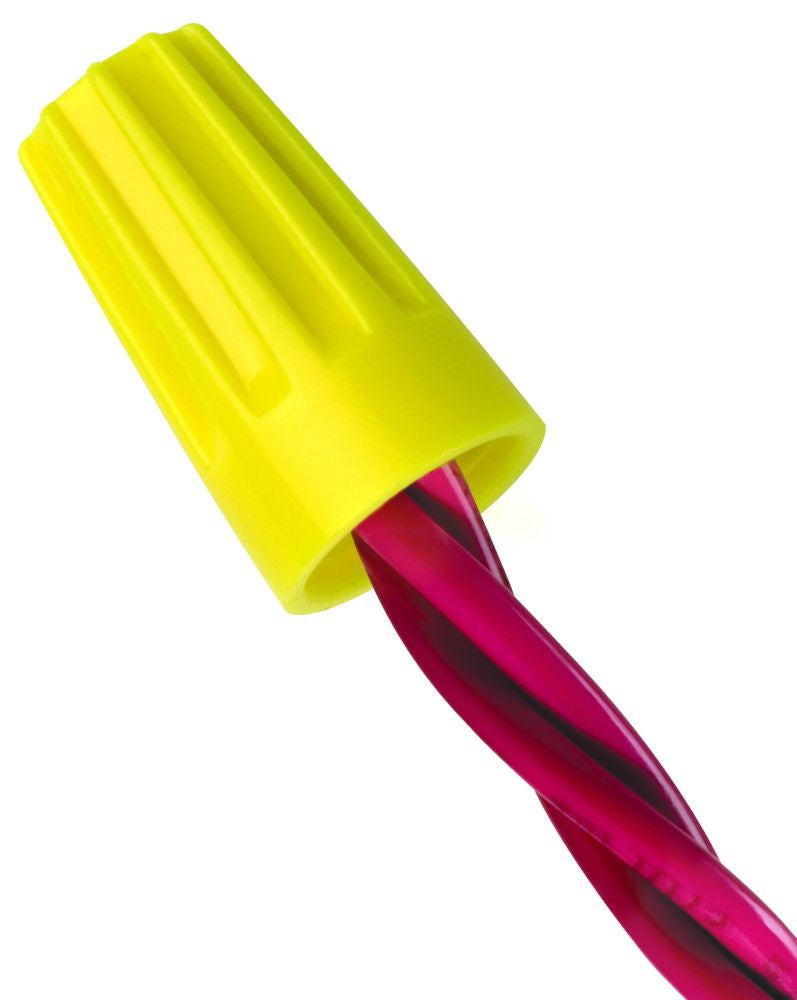

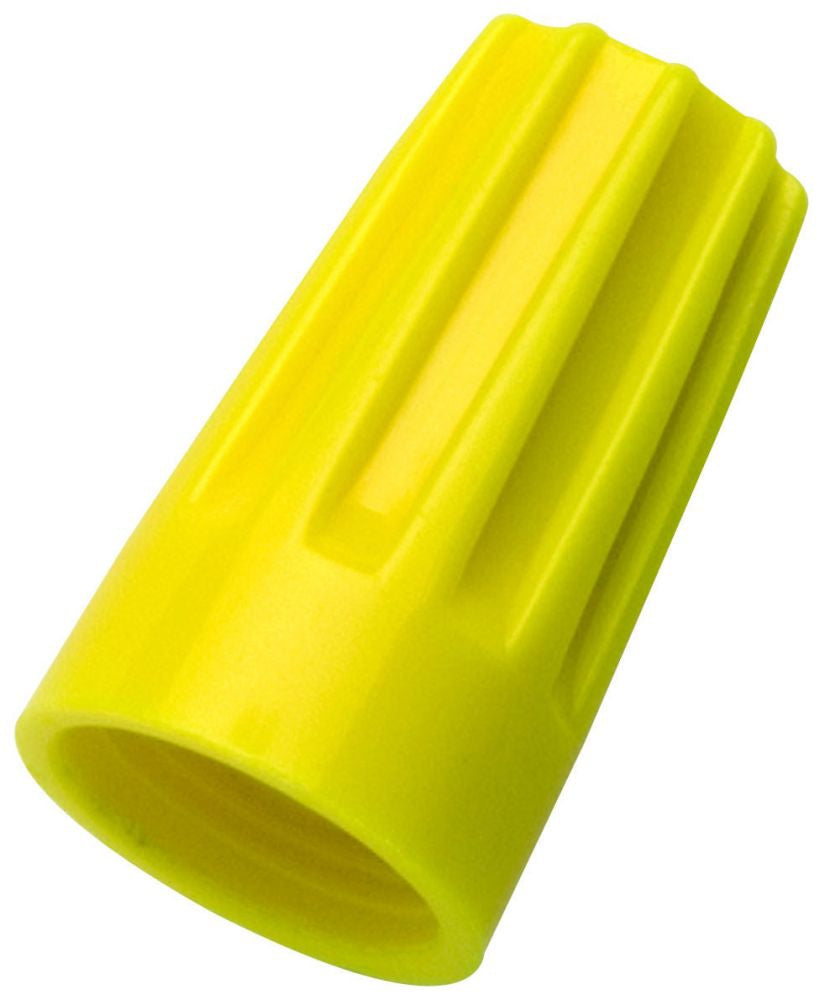

IDEAL Electrical 30-674 Twist-On Wire Connector

Out of stock
SKU: 120073
Regular price $140.73
OR

The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come. With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Specifications:

Type: Positive Grip
Voltage Rating: 600 Volt
Wire Type: Copper
Wire Size: 18 to 12 AWG
Minimum Wire Combination Size: (2) #18
Maximum Wire Combination Size: (4) #14, (1) #18
Spring Type: Fixed, Square Wire
Shell Material: Zinc Plated Polypropylene
Color: Yellow
Temperature Rating: 221 Deg F
Standard Package: 5000 per Keg
Approval: UL 486C, CSA C22.2, CE
