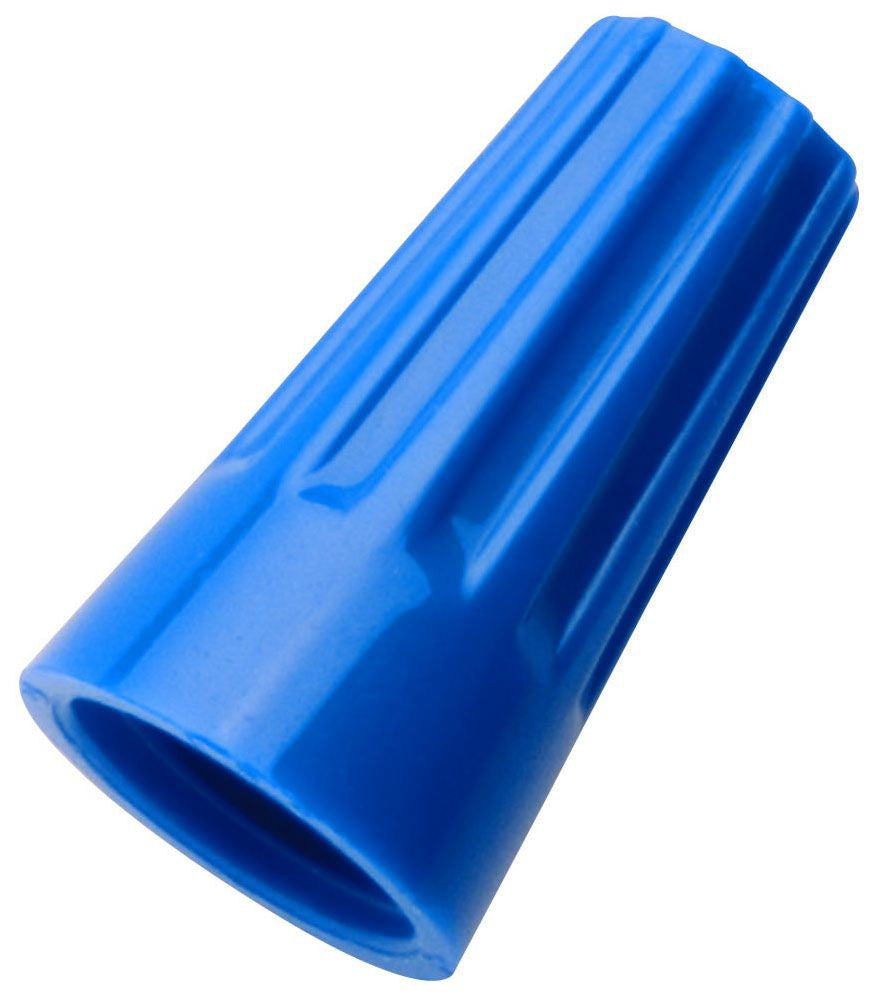

The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come. With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition. Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.

Specifications:

Type: Positive Grip
Voltage Rating: 300 V
Wire Type: Copper
Wire Size: 22 to 14 AWG
Minimum Wire Combination Size: (2) #22
Maximum Wire Combination Size: (3) #16
Spring Type: Fixed, Square Wire
Color: Blue
Temperature Rating: 221 Deg F
Standard Package: 85000 per Barrel
Approval: UL, CSA, CE
