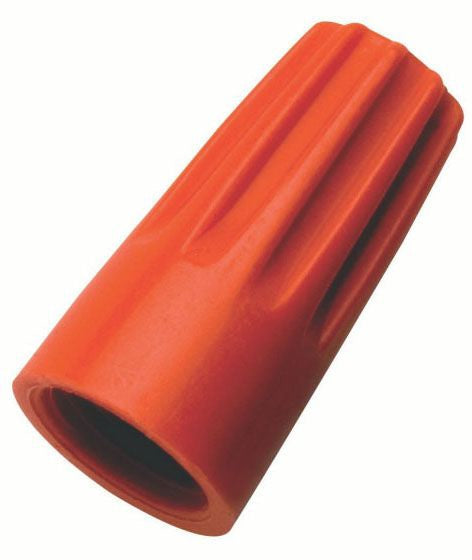

The Ideal Wire-Nut Wire Connector Set New Standards For Innovation, Quality and Convenience When it was First Introduced in 1928. As the First Screw-On Wire Connector in America, It Literally Set the Industry Standard for Years Tt Come. with a Fixed, Square-Wire Spring and a Positive Grip Shell, The Wire-Nut is Perfect to Twist-On with Fingers for a Secure Connection that will Last. The Refined Wire Range Makes it the Best Choice for Fine Stranded Wire Applications. The Wire-Nut Also Features a Tough, Flame-Retardant Thermoplastic Shell that Withstands Environmental Extremes and is Reusable For Easy Circuit Changes and Addition. with Five Color-Coded Models Available, Wire-Nut Wire Connectors will Handle Any Job From as Small as #22 Gauge Wire Up to #6 Gauge Wire. Additionally, Models 71B, 72B, and 73B, in Both Color Or Black High-Temp, are the Only Twist-On Wire Connectors Rated for Use in Air Handling Spaces. These Connectors Can be Used On Class 2 Or Low-Voltage Connections Inside Plenums, Ducts, and Other Environmental Air Handling Spaces without the Need Ffr a Box. The Black High-Temperature Models are Designed to Withstand the Extreme Heat Build-Up Found in High-Wattage Light Fixtures and Signs.

Specifications:

Type: Positive Grip
Voltage Rating: 600 Volt
Wire Type: Copper
Wire Size: 22 to 14 AWG
Minimum Wire Combination Size: (1) #18, (1) #20
Maximum Wire Combination Size: (2) #14
Spring Type: Fixed, Square Wire
Shell Material: Zinc Plated, Polyester
Color: Orange
Standard Package: 300 per Jar
Approval: UL, CSA, CE
