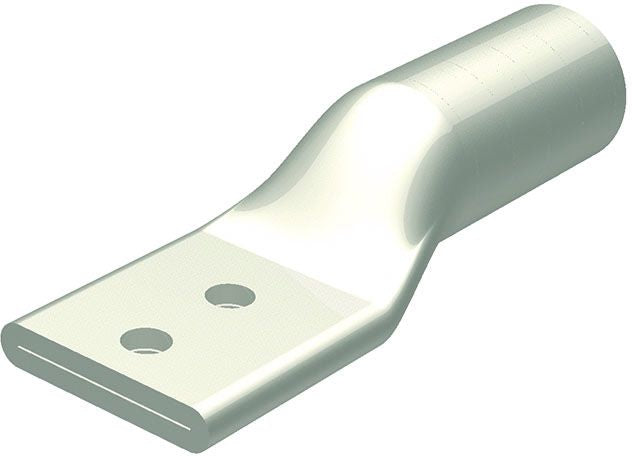

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 250 KCMIL Aluminum (Code), 250 KCMIL Stranded Copper (Code)
Barrel Type: Standard, Straight
Barrel Length: 1.45 Inch
Pad Size: 1.26 Inch W x 0.33 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Red
Die Index: 324
Material: Electro-Tin Plated Aluminum
Overall Length: 5.28 Inch
Approval: UL 468A/B, CSA
