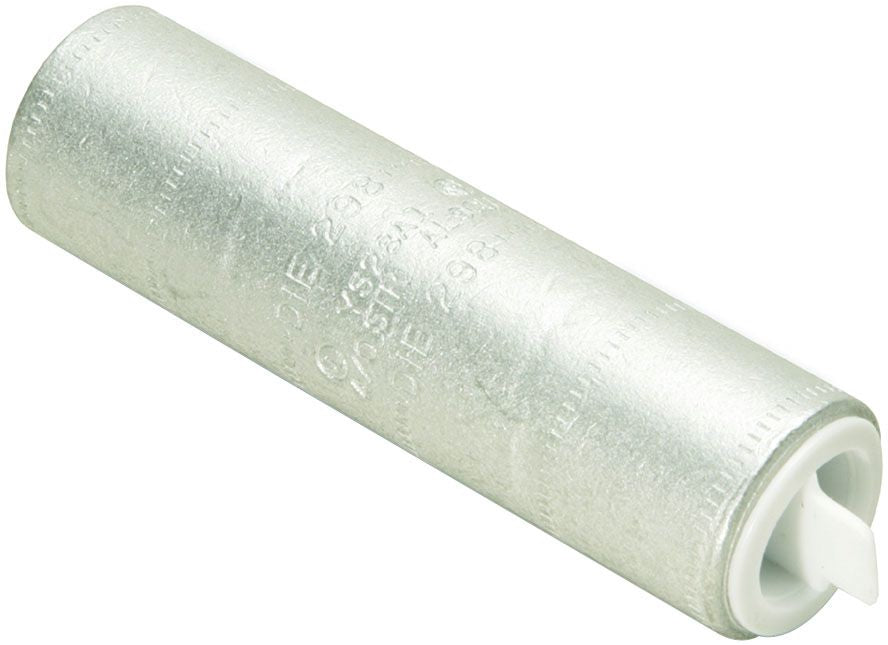

Burndy YS25A1 Compression Cable Splice

In stock - 10 items available
SKU: 121050
Regular price $11.66
OR

Manufactured from High-Conductivity Wrought Aluminum with Heavy Duty Wall Thickness; Provides High-Conductivity/Low Resistance and Ductility for an Excellent Combination of Electrical and Crimp Forming Properties; Electro-Tin Plated Provides Durable Long Lasting Corrosion Resistance; Internally Beveled Barrel Provides Easy Cable Entry; Solid Center Stop and Pre-Filled with Penetrox Oxide Inhibiting Compound Provides Stop for Proper Conductor Insertion and an aid in Forcing the Penetrox Between the Individual Wire Strands; Color-Coded End Caps Provides Easy Wire Size and Die Code Identification Plus Prevents Foreign Materials from Entering and Contaminating the Connector Prior to Usage; RoHS Compliant

Specifications:

Type: Butt with Centre Wire Stop
Voltage Rating: 600 V to 35 KV
Conductor Size: 1/0 AWG Aluminum/Stranded Copper
Conductor Material: Aluminum/Copper
Color Code: Tan
Barrel Type: Standard with Belled End, Chamfered
Length: 2.37 Inch
Outer Diameter: 0.6 Inch
Body Material: Electro-Tin Plated Aluminum
Approval: UL, CSA
