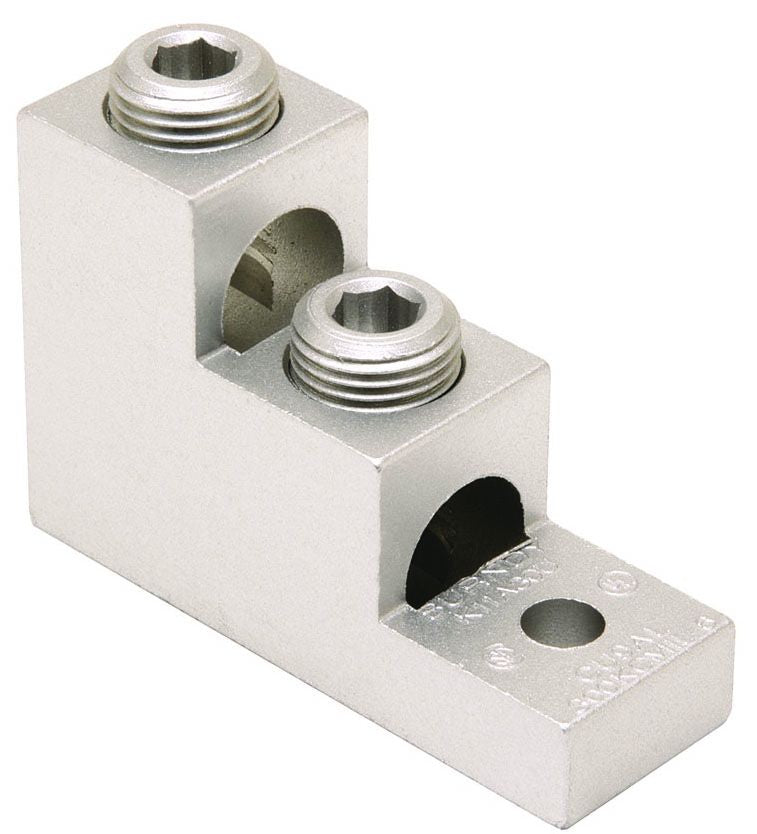

Dual-Rated Panelboard Lugs are Constructed from High Strength Extruded Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors; RoHS Compliant

Specifications:

Type: Universal, Dual Rated
Number of Conductors: 2
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 300 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Extruded Aluminum Alloy
Number of Pad Holes: 1

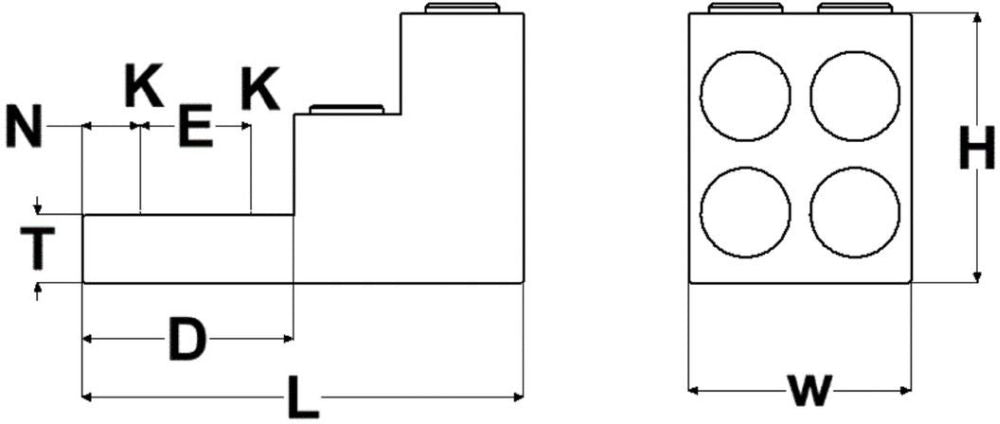

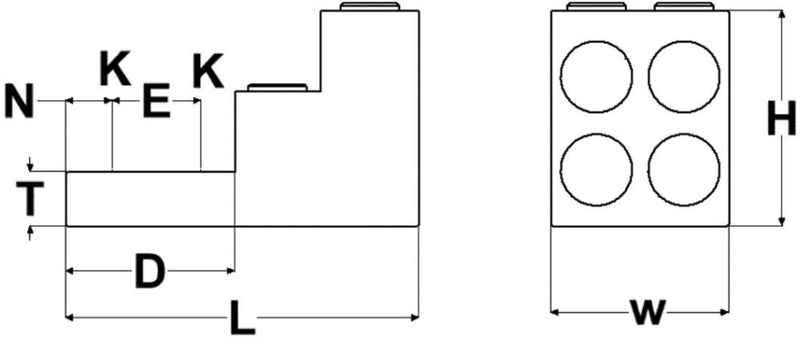

Pad Size: 0.94 Inch Length x 1 Inch Width x 0.5 Inch Thickness
Stud Size: 5/16 Inch
Overall Length: 3 Inch
Approval: UL 468A/B, CSA
