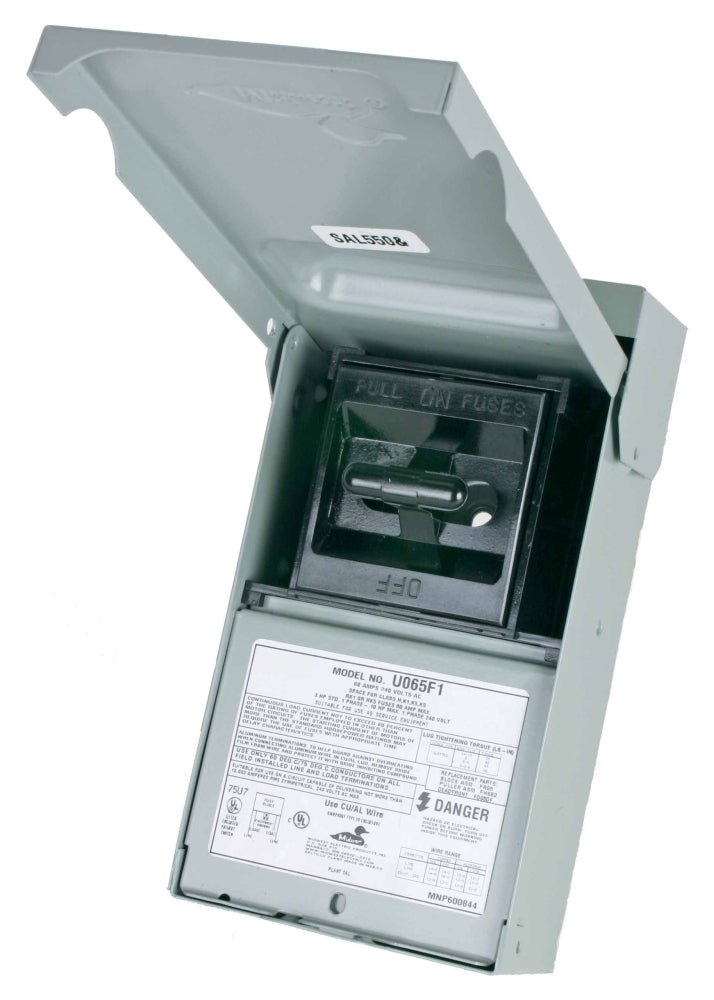

Midwest Electric Products U065F1 Air Conditioner Disconnect Switch

  • Sale
  • Regular price $16.57
Shipping calculated at checkout.


Rugged Durability; NEMA 3R Weather Proof Enclosure; Noryl Thermoplastic Enclosure is Corrosion-Resistant and Extremely Durable, Giving Long Maintenance-Free Service; Metallic Models are Made of G90 Galvanized Steel for Superior Corrosion Protection and have a Durable Polyester Powder Coat Finish Which Resists Chipping and Fading; User Safety Padlock Provision on Door Helps Prevent Unauthorized Access; 3-Piece Construction that Opens up Mounting and Wiring Area; Numerous Knockouts Reduce Installation Time; Straight-In, Straight-Out Wiring Saves Time and Money

Specifications:

Type: Air Conditioner Disconnect
Voltage Rating: 120/240 Volt AC 1-Phase
Current Rating: 60 Amp
Power Rating: 10 HP
Fuse Provision: Fusible
Enclosure: NEMA 3R
Enclosure Material: G90 Galvanized Steel
Wire Size: 14 to 8 AWG Line/Load and 12 to 8 AWG Equipment Ground Solid, 14 to 2 AWG Line/Load and 12 to 2 AWG Equipment Ground Stranded (Copper), 12 to 8 AWG Line/Load/Equipment Ground Solid, 12 to 2 AWG Line/Load/Equipment Ground Stranded (Aluminum)
Size: 5 Inch Width x 2-3/4 Inch Depth x 9 Inch Height
Approval: UL (Canada and US), CUL
