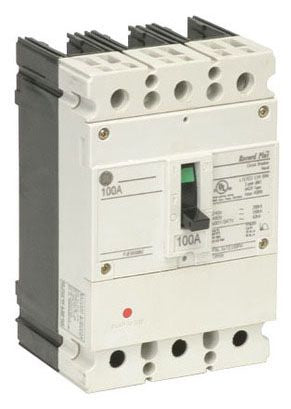

ABB GE Industrial Solutions FBV36TE030RV Molded Case Circuit Breaker

Record Plus Represents the Very Latest in Molded Case Circuit Breaker Design; Utilizing Design Features Such as Double-Break Rotary Contact Structures and Advanced Ablative Materials to Enhance Interruption, Record Plus is Capable of Interrupting Ratings up to 200 Kiloamp; High KAIC Ratings, Selective Coordination, Reduced Arc Flash Energy and Current Limitation Embody the Core Design Principles of Record Plus; FB 100 Circuit Breakers are Supplied with Factory Installed Non-User Interchangeable Thermal-Magnetic Trip Units and can be Supplied with or without Lugs

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Current Limiting
Frame Type: FB
Voltage Rating: 600 Star Volt/347 Volt AC
Maximum AC Voltage Rating: 600 Star/347 Volt
Current Rating: 30 Amp
Number of Poles: 3
Interrupting Rating: 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 22 Kiloamp at 600 Star Volt/347 Volt AC
Terminal Type: Line Connector, Load Lug
Size: 4.11 Inch Width x 3.28 Inch Depth x 6.45 Inch Height
Approval: UL (Canada and US)
