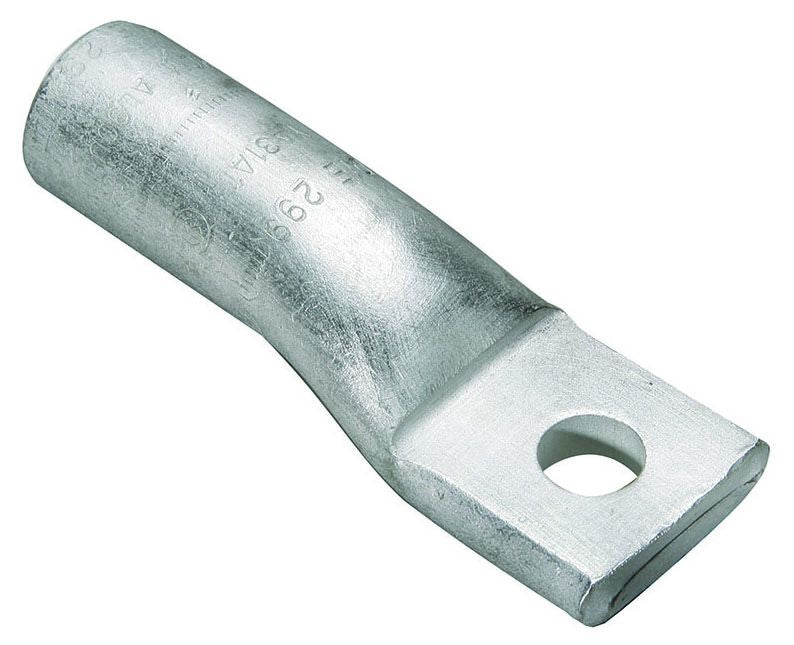

Burndy YA2CA3 Compression Terminal

Out of stock
SKU: 131608
Regular price $4.11
OR

Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 2 AWG Aluminum (Code), 2 AWG Stranded Copper (Code)
Barrel Type: Standard, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.88 Inch W x 0.16 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Pink
Die Index: 348
Material: Electro-Tin Plated Aluminum
Overall Length: 2.56 Inch
Approval: UL 468A/B, CSA
