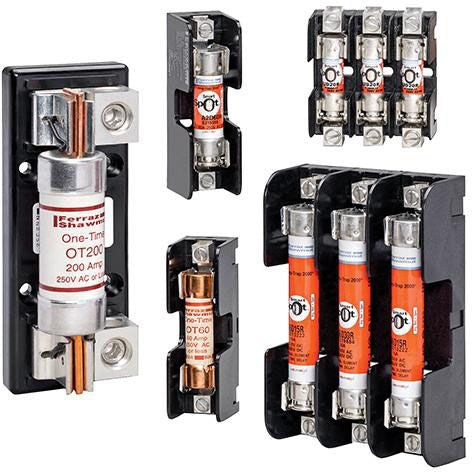

Mersen EP 62003R Fuse Block

Class R Fuse Blocks Accommodate All Class H, K and R 250 and 600V Power Fuses; A Choice of Screw, Pressure Plate, Box and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Conductors; Insulators are Either Molded Glass-Filled Polycarbonate (Gap) or Phenol with Verified Dielectric Strength in Excess of 2500V 30, 60 and 100A Fuse Blocks Feature a Unique Adder Block Which Can be Snapped Onto 1, 2 or 3-Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin-Plated Copper with a Choice of Spring Reinforced or Non-Spring Reinforced Clips in 30A and 60A; Clips 100A and above are Spring Reinforced; RoHS/REACH Compliant

Specifications:

Type: Barrier
Material: Phenolic
Number of Poles: 3
Fuse Type: Class R
Fuse Voltage Rating: 600 VAC
Fuse Current Rating: 200 Ampere
Wire Size: 6 AWG to 350 KCMIL (Aluminum/Copper)
Terminal Type: Box Lug, Side Clip
Clip Type: Spring Reinforced
Approval: UL, CSA
