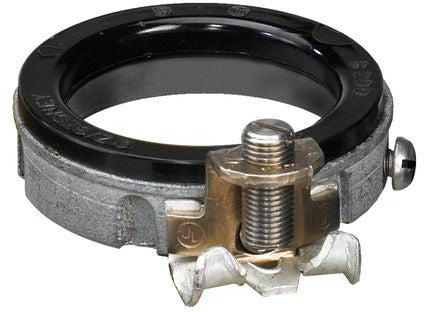

O-Z/Gedney SBLG-4122 IMC/Rigid Conduit Grounding Bushing

O-Z/Gedney Type SBLG specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing. They help protect insulated conductors from abrasion during pulling or due to mechanical vibration, and provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress.

Specifications:

Type: Threadless Set Screw
Trade Size: 4 Inch
Wire Size: 8 AWG Solid/Stranded to 2/0 AWG Stranded
Lug Type: Lay-In, Tin Plated Copper Saddle
Conductor Material: Copper/Aluminum
Throat Type: Phenolic Insulated
Diameter: 5 Inch
Height: 1-1/8 Inch
Material: Zinc Plated Malleable Iron Body, Stainless Steel Clamp Screw, Tin Plated Copper Grounding Saddle
Approval: UL 467/514B, CSA 22.2
Used On: Threadless Rigid Conduit/IMC
