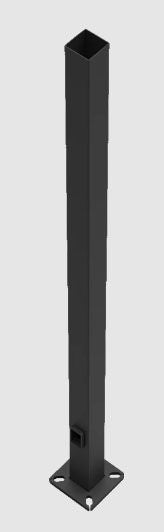

Designed for Ground Mounting; Reinforced Hand Holes with Grounding Lug and Removable Cover for Easy Wiring Access; Custom Manufactured for Each Application; Hand Hole Reinforced with Grounding Lug and Removable Cover; All Bolts have a 3 Inch Hook

Specifications:

Type: Square Straight
Number of Fixtures: 2
Nominal Mounting Height: 10 Ft
Shaft Bottom Size: 4 Inch
Shaft Top Size: 4 Inch
Shaft Wall Thickness: 1/8 Inch
Shaft Mounting Type: Square Base
Mounting Base Size: 8 Inch L x 8 Inch W x 3/4 Inch Thk
Bolt Circle Diameter: 8-1/2 Inch
Bolt Size: 3/4 Inch Dia x 17 Inch L x 3 Inch Thd
Hand Hole Type: 3 Inch W x 5 Inch H
Fixture Mounting Type: Drill
Arm Capacity: 690 Lb at 70 MPH, 530 Lb at 80 MPH, 330 Lb at 100 MPH, 410 Lb at 90 MPH, 265 Lb at 110 MPH, 215 Lb at 120 MPH, 175 Lb at 130 MPH, 145 Lb at 140 MPH, 120 Lb at 150 MPH
Wind Load Rating: 70/80/90/100/110/120/130/140/150 MPH
Effective Projected Area: 27.6 Sq Ft at 70 MPH, 21.1 Sq Ft at 80 MPH, 16.4 Sq Ft at 90 MPH, 13.1 Sq Ft at 100 MPH, 10.5 Sq Ft at 110 MPH, 8.6 Sq Ft at 120 MPH, 7 Sq Ft at 130 MPH, 5.8 Sq Ft at 140 MPH, 4.8 Sq Ft at 150 MPH
Shaft Material: Steel
Shaft Finish: Polyester Powder Coated
Shaft Color: Bronze
