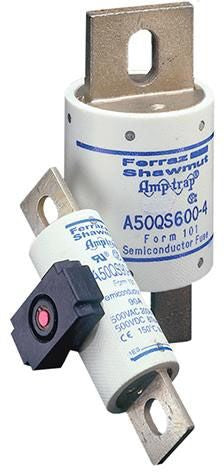

A50QS Amp-Trap Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features-lower I 2 t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today's best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Specifications:

Type: Round, Semiconductor
Characteristics: High Speed
Voltage Rating: 500 Volt AC/DC
Current Rating: 100 Amp
Interrupting Rating: 50 Kiloamp (AC)
Terminal Type: Blade
Diameter: 1 Inch
Length: 3.63 Inch
Approval: UL 60314, CSA LR12636
