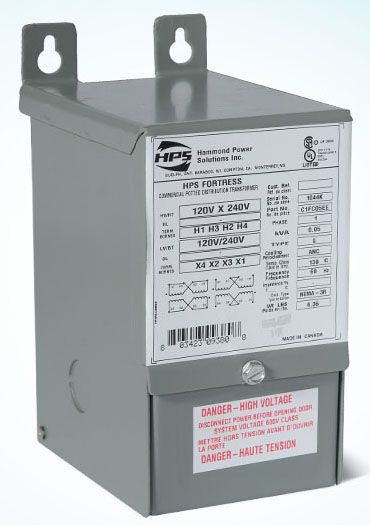

Hammond Power Solutions Q1C0ESCB Buck Boost Transformer

The HPS Universal line of buck-boost transformers represent an economical way to both raise supply voltage caused by line drop or equipment demand on the distribution system; or lower voltage caused by increased system voltages due to supply line adjustments. Some loads including lighting and resistive loads, require a stable supply to maintain performance. The detrimental effects of incorrect supply line voltage can cause equipment failure.

Specifications:

Power Rating: 1000 Volt Amp
Construction: Encapsulated, Welded Core
Primary Voltage: 120 x 240 Volt AC
Secondary Voltage: 16 x 32 Volt AC
Frequency Rating: 50/60 Hertz
Number of Phases: 1
Winding Type: Copper
Temperature Rise: 80 Deg C
Enclosure: NEMA 3R
Weight: 25 Pound
Size: 5.88 Inch Width x 5.5 Inch Depth x 10.5 Inch Height
