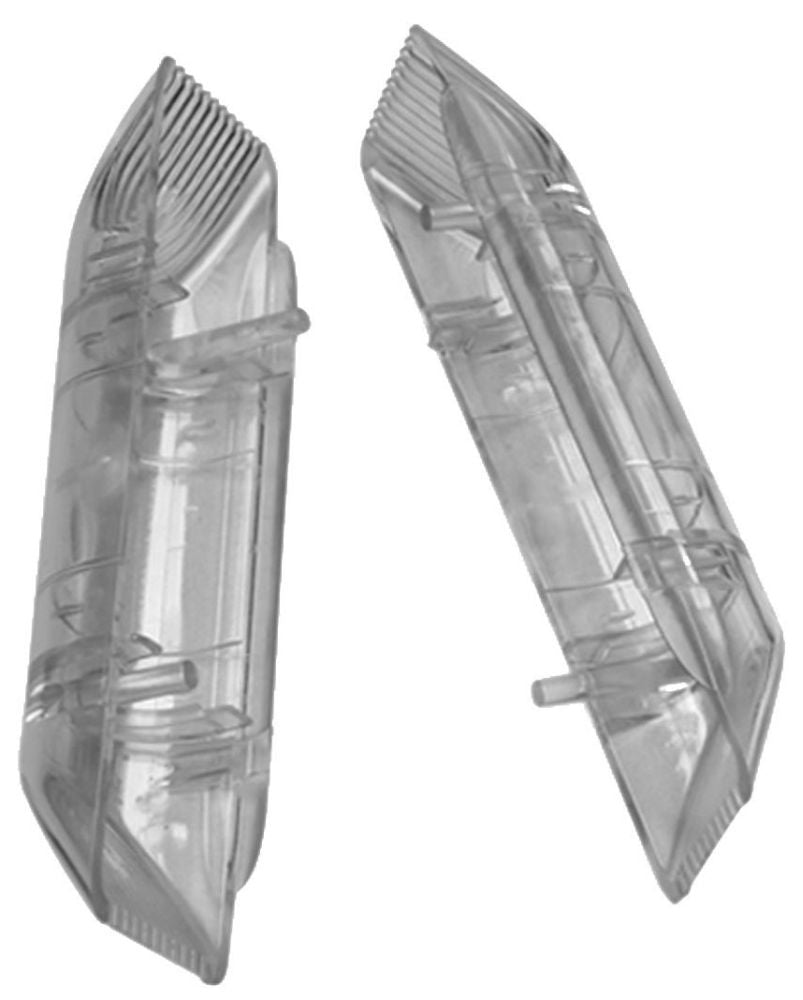

Burndy CCFD-FR Compression Cable Tap Cover

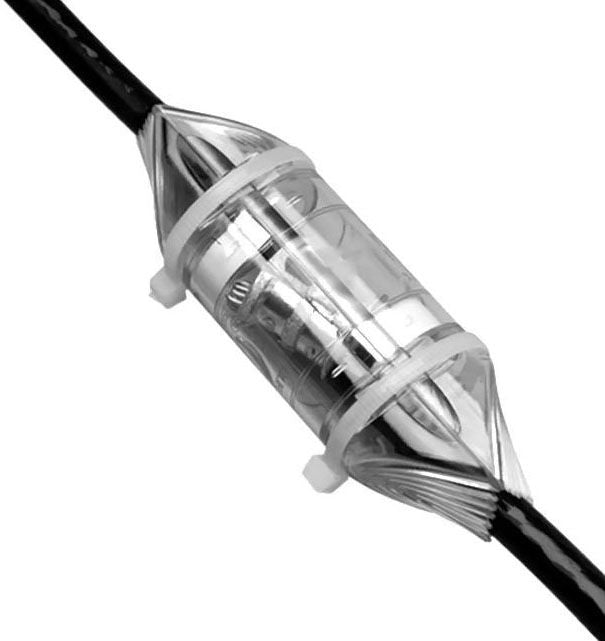

Insulation Cover that has a 2-Piece Design with Positive Locking Latch to Ensure Correct Installation; Prevents Opening after Installation; After an H-Tap Connection is Made, the Appropriate Type CCF-Fr Cover Can be Used to Slip Over the Connection and Latch Securely Shut; Embedded Magnifying Lense in the Cover Provides Increased Visibility of the H-Tap Die Embossment on the Connector Made by the Require Installation Tooling; This Allows for Improved Visibility During a Connection Inspection; Made of Polished Clear Polycarbonate Material that Provides; High Visibility for Inspection of Installed H-Tap Connection; Built-In Channels on the Outside of the Covers Accommodate and Hold Cable Ties, Hook and Loop Ties, or Waxed Cord Security in Place after Cover Installation; Patented Highly Flexible Fingers on Each Cover are Designed to Contour Around the Wire; Internal Pockets Designed to Accommodate Identification Tag; The Use of the Insulation Cover Eliminates the Need to Tape the Connection Making this Solution a Fast and Reliable Method of Insulating; Molded Barrier Prevents Installed H-Tap Connectors from Electrical Flashover; Covers Come with Two Clear Halves, Two Cable Ties, and Four Identification Tags; RoHS Compliant

Specifications:

Type: H-Tap
Maximum Wire Size: 250 KCMIL
Material: Flame Retardant Polycarbonate
Color: Purple
Installation: Two Piece, Latch
Temperature Rating: 90 Deg C
Used on: YH292C/YH298C Wire Conductor
Approval: UL, CSA
