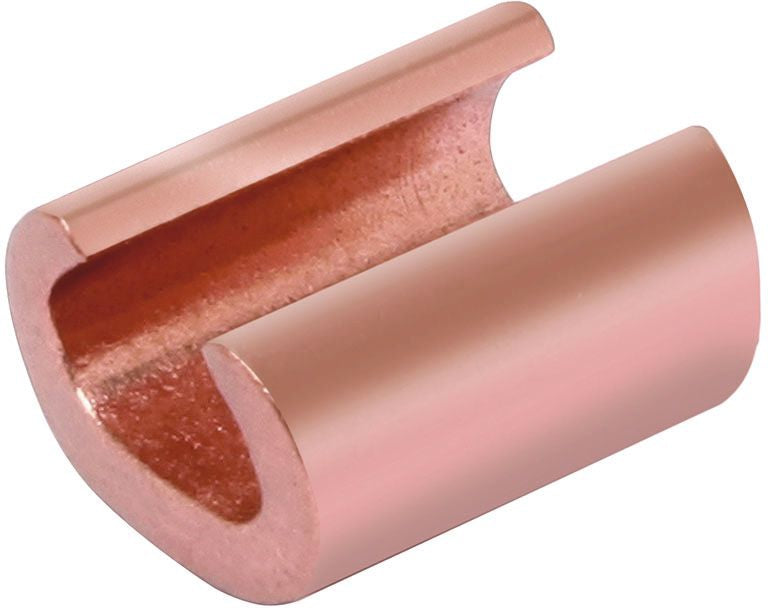

Burndy YC28C26 Compression Tap Connector

Range-Taking Conductor; Lowers Inventory Requirements; Compact Size; Easy to Tape and Insulate Connection; Manufactured from High Conductivity Wrought Copper Provides Low Resistance and Excellent Electrical Conductivity; Economical Provides Low Installed Cost; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 KV
Shape: C
Number of Taps: 1
Conductor Material: Copper
Minimum Run Conductor Size: 3/0 AWG Solid, 4/0 AWG Stranded
Maximum Run Conductor Size: 3/0 AWG Solid, 4/0 AWG Stranded
Minimum Tap Conductor Size: 1/0 AWG Solid, 2/0 AWG Stranded
Maximum Tap Conductor Size: 1/0 AWG Solid, 2/0 AWG Stranded
Die Index: F/D3
Body Material: Wrought High Conductivity Copper
Approval: UL, CSA
