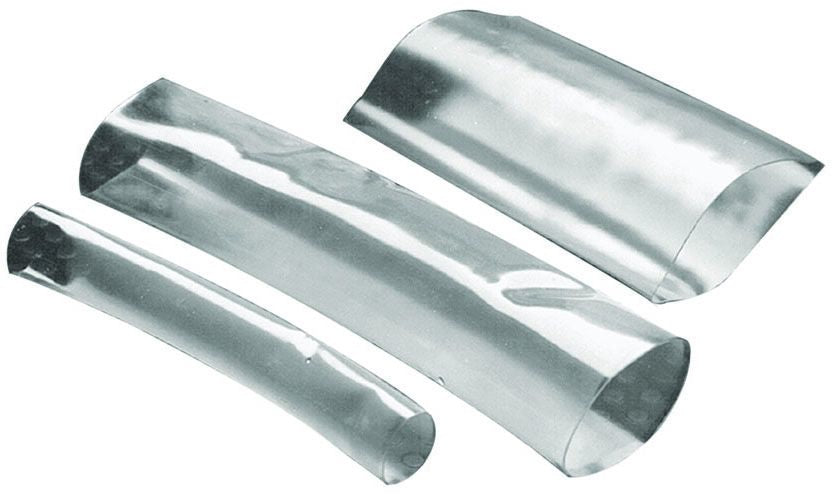

Burndy HSC12FR Heat Shrink Tube

A Flexible Polyvinyl Chloride Clear Heat-Shrink Tubing, Excellent Flame Retardant Properties and a 2:1 Shrink Ratio, the VISI-SHRINK Tubing Enables Inspectors to Read Die Index Embossments on Installed Connectors Easily, UL Recognized, 105 DEG C, 600V, the Operating Temperature from -20 to 105 Deg C with a Shrink; RoHS Compliant

Specifications:

Type: Fire Retardant
Voltage Rating: 600 V
Cable Size: 4 to 1 AWG (Code), 6 to 4 AWG (Flex)
Shrink Temperature: 275 Deg F
Material: PVC
Shrink Ratio: 12/30/1899 2:01:00 AM
Minimum Expanded Diameter: 0.5 Inch
Maximum Recovered Diameter: 0.25 Inch
Length: 50 Ft
Thickness: 0.025 Inch
Temperature Rating: -20 to 105 Deg C
Color: Clear
Approval: UL 224, CSA
