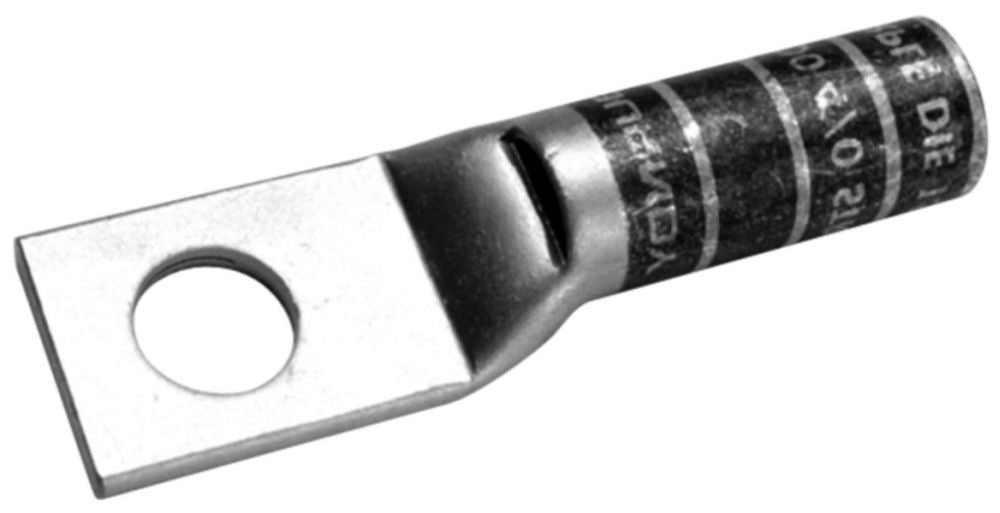

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 550/24, 4/0 AWG (Weld Flex), 4/0 Stranded
Barrel Type: Long, Skived, Straight
Barrel Length: 1.62 Inch
Pad Size: 1.14 Inch W x 0.14 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Purple
Die Index: 15
Material: Electro-Tin Plated Copper
Overall Length: 3.01 Inch
Approval: UL, CSA
