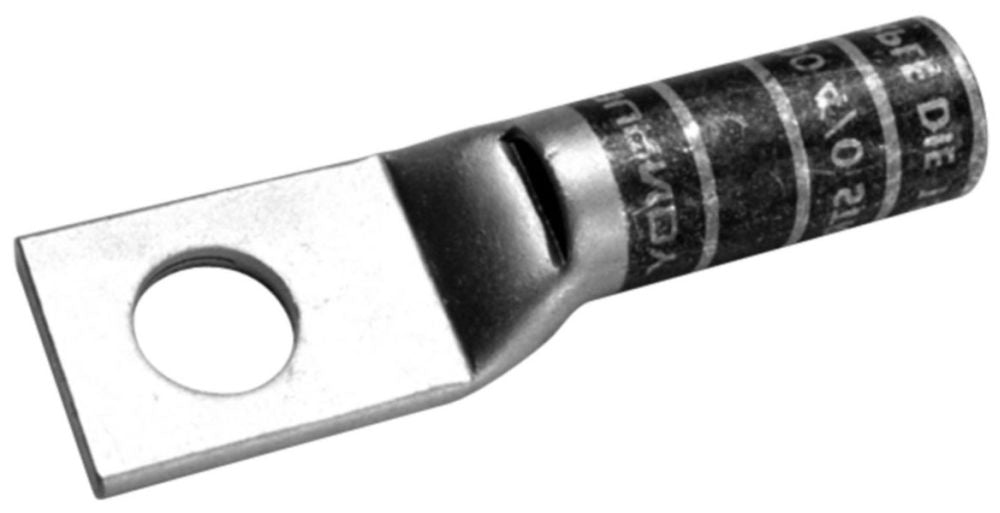

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 125/24 to 150/24, 2 AWG (Weld Flex), 2 AWG Stranded
Barrel Type: Long, Skived, Straight
Barrel Length: 1.38 Inch
Pad Size: 0.68 Inch W x 0.1 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Brown
Die Index: 10
Material: Electro-Tin Plated Copper
Overall Length: 2.56 Inch
Approval: UL, CSA
