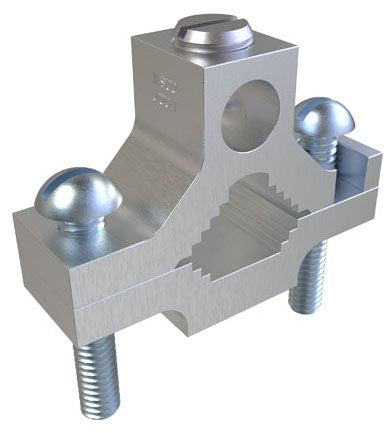

Ilsco AGC-1 Ground Clamp

Dual Rated; Manufactured from High Strength 6061-T6 Aluminum Alloy; Clear Plated; Versatile; Range Taking; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Effectively Grounds Aluminum or Copper Conductors to Copper Water Pipe, Galvanized Pipe or Steel Conduit; Three Sizes Cover a Range from 1/2" to 4" Pipe with a Ground Wire Range of 250 Kcmil - #14 Which Reduces Inventory; Provides Ease of Installation for Long Ground Wire Runs; RoHS Compliant

Specifications:

Conductor Size: 14 to 1/0 AWG
IPS Size: 1/2 to 1 Inch
Size: 2-1/4 Inch L x 11/16 Inch W
Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
Material: Clear Coated High Strength 6061-T6 Aluminum Alloy
Approval: UL
Used On: Aluminum/Copper Conductor to Copper Water Pipe, Galvanized Pipe or Steel Conduit
